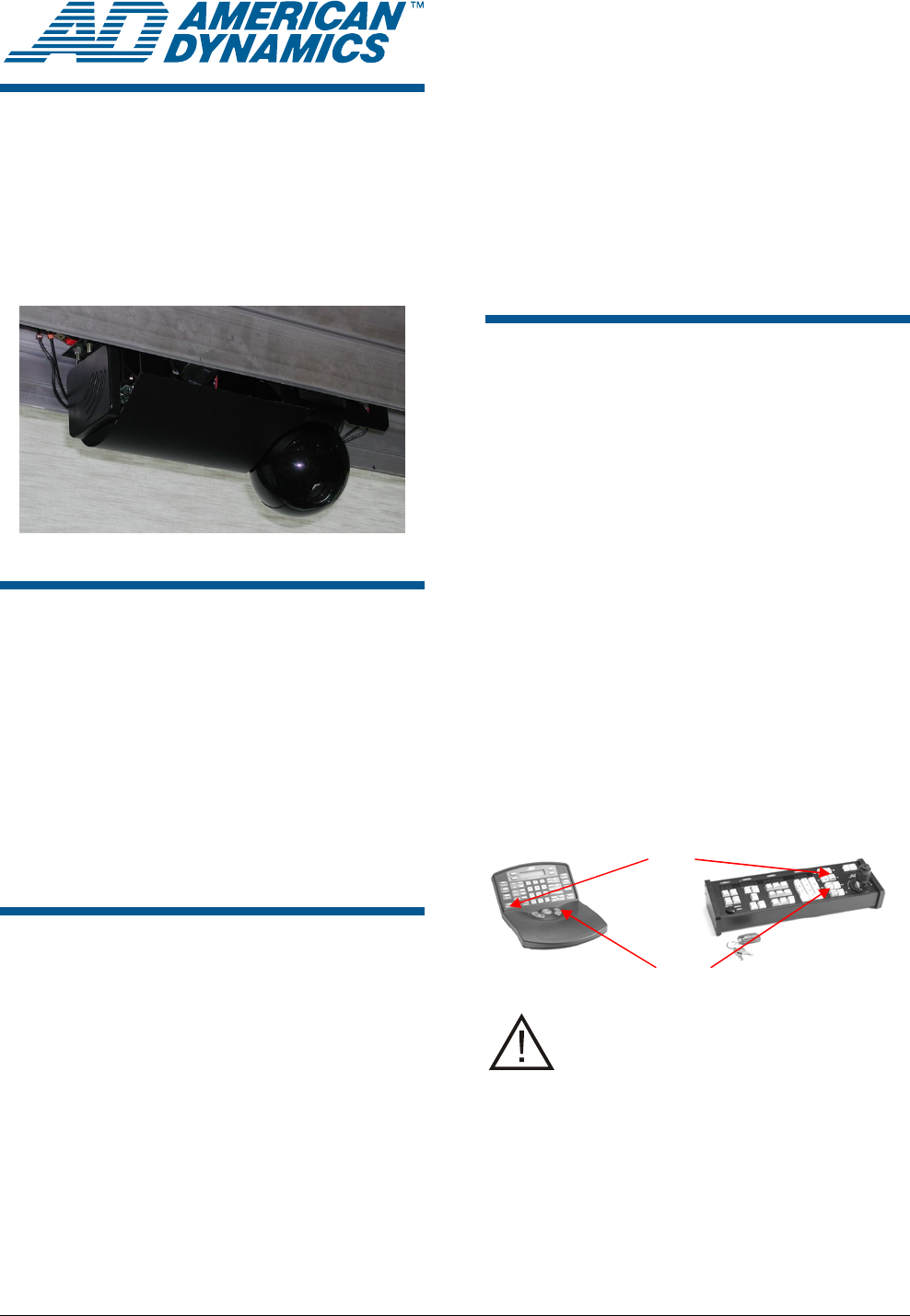

American Dynamics AD300 Security Camera User Manual



SensorRail
IIIe
ADRL3TRK Series
SpeedDome
®
Ultra Programmable
Dome on a Rail
User Guide
About this Manual
This user manual describes how to operate the
SensorRail™ IIIe system using AD matrix
switchers and controllers. This guide does not
explain how to:
Operate matrix switchers and controllers. See
instructions included with the device.
How to install the product. See Installation
Guide 8200-0593-02
Service the system. See Service Guide 8200-
0593-03.
Product Description
The SensorRail IIIe system enables a SpeedDome
Ultra dome camera to transmit video as it moves
along a rail to the ideal surveillance position. The
system consists of:
Camera trolley that includes a SpeedDome
Ultra VII dome camera, an electronic positioning
board, and an RF video link system.
A rail that the camera trolley runs along.
PowerRail module that supplies dc power to the
trolley and converts data.
The SensorRail IIIe system is compatible with all
current AD matrix switchers and controllers.
Communication between the control device and the
rail system is done using an AD RS-422 protocol.
Note: The matrix switcher perceives the rail as a
dome camera. Therefore, all dome features are
available except privacy zone, competitor’s dome
protocols, home position, direction indicators,
freeze frame, and iris features.
Controlling the Rail System
The following devices can be used to control the
dome camera as it moves along the rail:
AD Keyboard (AD2079 / AD2088 / AD2089)
ADTTE / ADTT16E Touch Tracker
®
VM96 Matrix Switcher
MegaPower LT
AD200/300/1100.
Depending on the camera trolley configuration, you
move the trolley along the rail by using the Iris
OPEN/CLOSE keys (or Focus NEAR/FAR keys) on
the Touch Tracker or AD keyboard.
Press iris OPEN (or focus NEAR) to move the
trolley forward.
Press iris CLOSE (or focus FAR) to move the
trolley backward.
Note: Dome Auto-Focus mode is available by
simultaneously pressing the iris OPEN and CLOSE
keys.
© 2006 Sensormatic Electronics Corp.
IRIS
FOCUS
SpeedDome Ultra VIII: If this dome is
installed in the trolley, the following
features are not recommended:
Privacy Zones
Direction Indicators.
Freeze frame
Home position
Even if these features are operational,
their function depends on the dome
remaining stationary.
SENSORRAIL IIIe 8200-0593-04 B0
USER GUIDE
1 of 2
