ASSEMBLY INSTRUCTIONS
FOR THE ASSAULT OUTFITTER:
Component List:
1 Tent Body, 1 Fly, 3 Pre-bent Tent Poles, 1 Carry Bag,
1 Stake Bag w/Stakes, 1 Pole Bag,
NOTE: Do not drop tent bag or pole bag on its end. Do not bounce tent bag on
its end to get the tent out. These actions may cut the shock cord and/or
damage the pole ends.
1. Unpack the tent bag and separate the components. Unfold the tent
and lay it out with the floor on the ground and with a grommeted web
in each corner. Pull the tent into a rough rectangle. Do not stake down
the tent just yet; but in windy conditions, stake down one corner that
faces into the wind.
2. Assemble the three shockcorded tent poles. Carefully seat each
section. Try to keep the poles from snapping together as this can
damage the rod ends.
3. At the front of the tent body at A, slide a pole diagonally across the
tent, through the sleeves, to the opposite side B. Follow the seam
from sleeve to sleeve. Push the pole, don't pull it. Continue with the
second pole through its sleeves from C to D. Finish with the third pole
from E to F.
See fig.1.
4. Insert the post end of a pole into its grommet on the corner
stake-out web. See fig.2. At the opposite corner, grasp the web
and simultaneously push the pole to form an arc. Insert the post
into the grommet to maintain tension. See fig.3.Repeat with the
remaining poles, raising the tent. See fig.4.
5. Your tent is now free-standing; place it in the desired location
and use the metal skewers to stake it down.
6. With the tent secure, unroll the fly and drape it over the tent.
The fly only fits one way; make sure the vestibule panel
window is directly over the front door of the tent. Reach under
the fly and connect the Velcro
®
fasteners to the tent poles,
through the openings in the sleeves.
See figs.5 & 6.
7. Connect the six
side-release buckles on the
fly to their mates on the tent
webs.
See fig.7.
8. At the rear of the tent, stake
down the pull-out web on
the fly.
9. At the front of the tent, pull the vestibule taut and stake it
down. Make sure that the vestibule is tight across the door flap.
With the vestibule staked down and tight, go to the corners /
sides of the tent and adjust the web pull-outs to tighten. Then if
necessary, adjust the rear vestibule stake out loop.
See Fig.8.
Your tent is now ready for use.
NOTE:
• The vestibule door of the fly can be rolled up at the bottom,
up to the top or to the side for better ventilation. Attach the
toggle to hold in place.
T
o help prevent condensation, keep
the doors open.
• In strong winds, tie extra ropes to the storm loops on the fly
and stake down.
Take down :
Pull up stakes. Release the fly's Velcro
®
and
buckles. Remove fly and open door. Pull posts out of the
grommets and push poles out of the sleeves. Collapse the
tent poles and stow. Fold the tent onto itself and fold the fly
and lay it on tent. Roll up both towards the door and stow.
REV.C 4.09

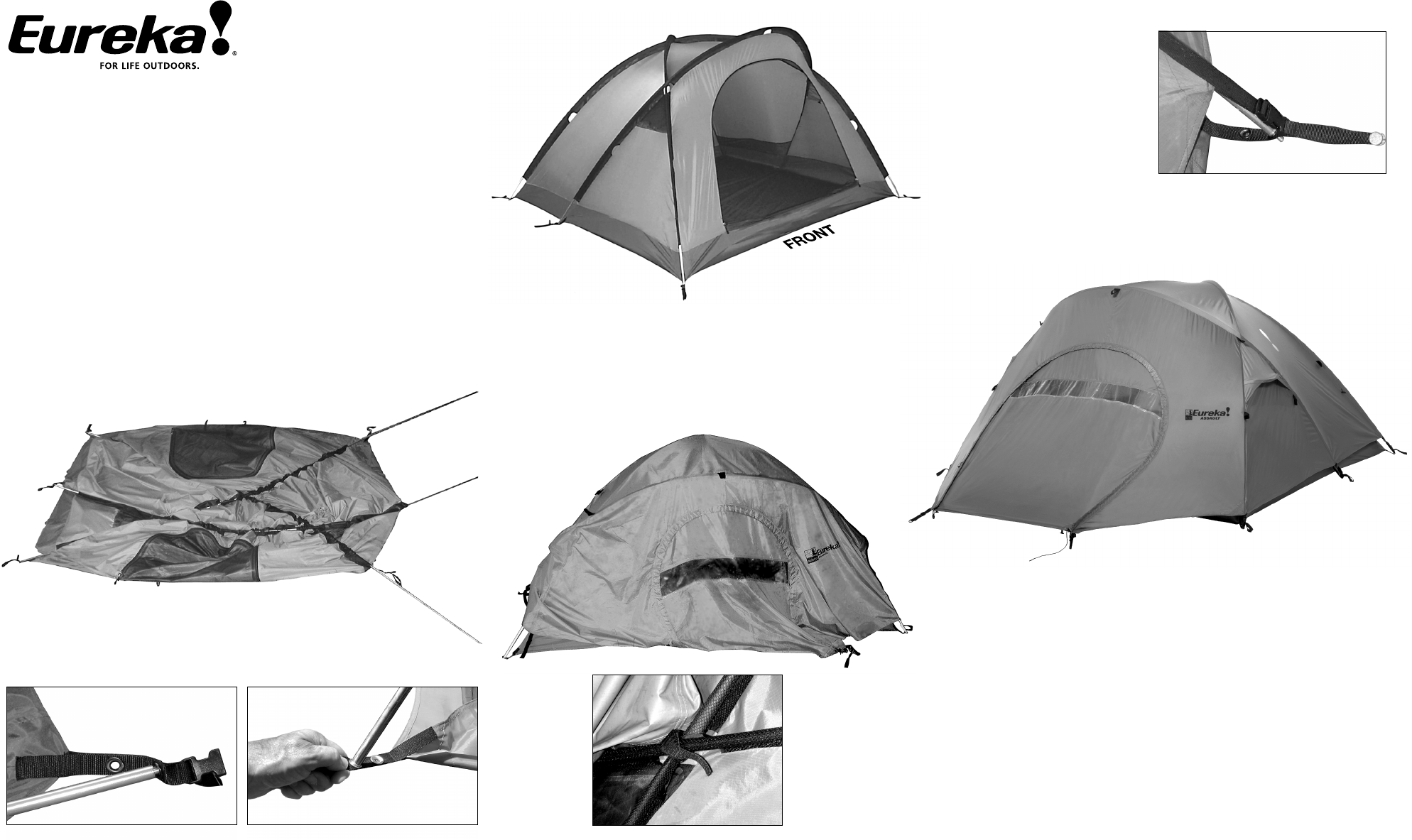

Fig.1
Fig.2 Fig.3
Fig4
Fig.5
Fig.6
Fig.7
Fig.8
