Scanner base fan
1. Remove the following items:
Flatbed unit. See
Flatbed scanner assembly on page 96.
Upper flatbed ribbon guide. See
Power supply on page 99 (steps 2 and 3).

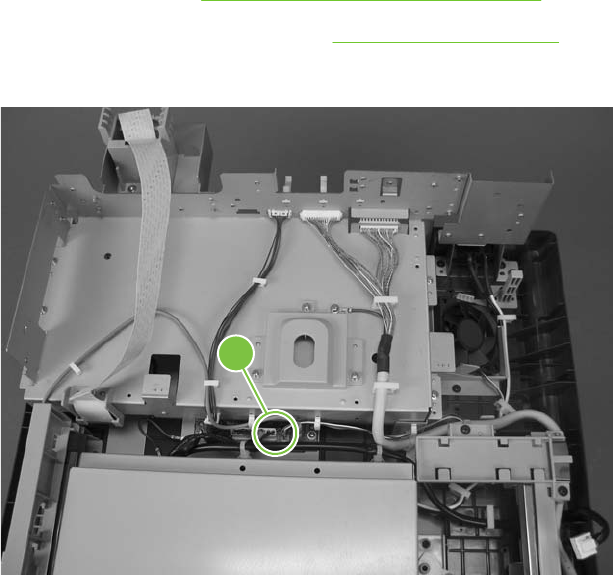

2. Disconnect the cable (callout 1) from the right side of the interconnect board.
1
Figure 5-93 Removing the scanner base fan (1 of 2)
106 Chapter 5 Removal and replacement ENWW
