EPL-7500 LASER PRINTER
Carefully fit the drive unit into the opening in the back of the
printer with the blue paper path lever in the upper right comer
of the opening.

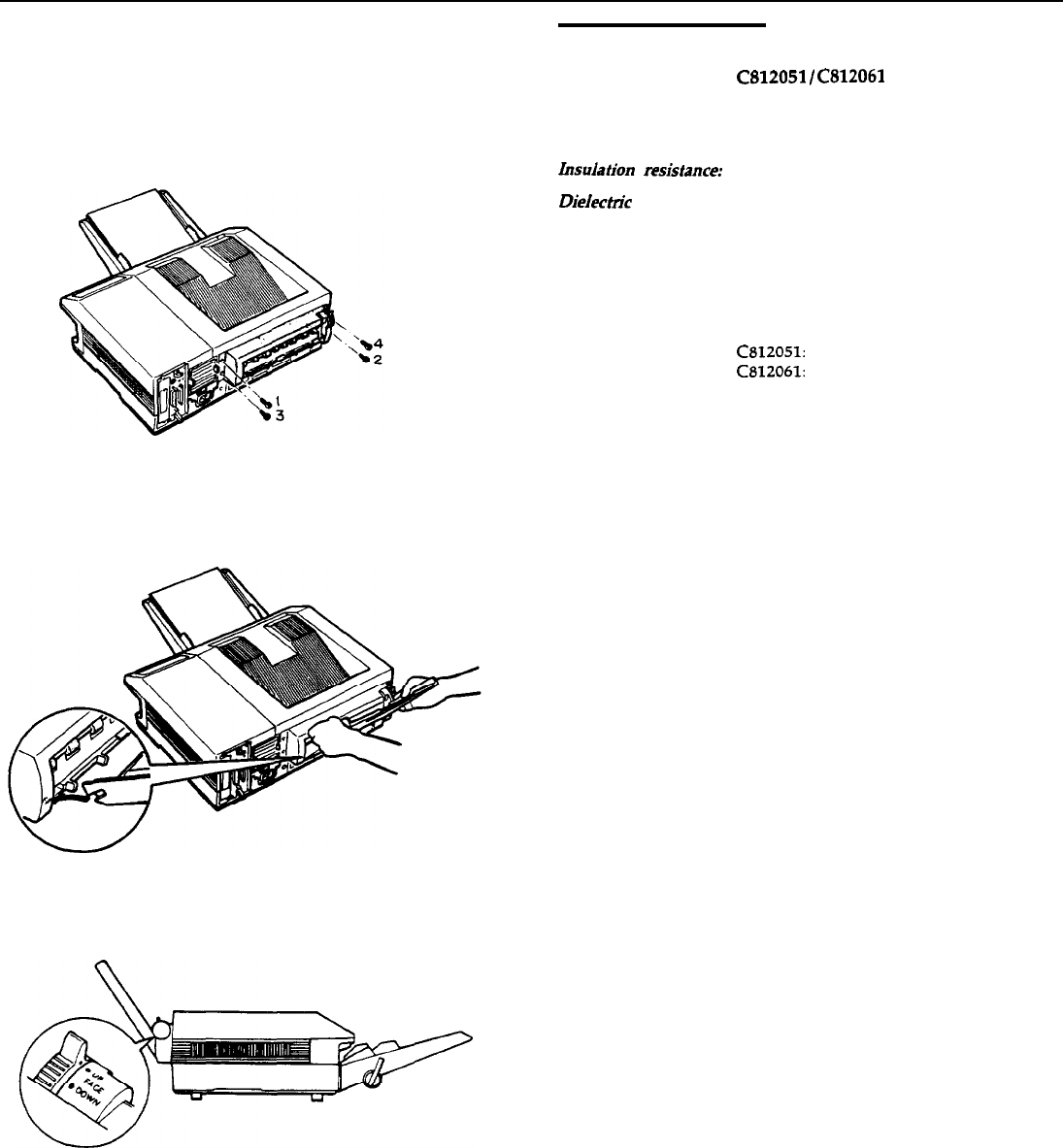

Insert the four screws in the holes in the drive unit, as shown
below. Partially tighten each screw in the order indicated by
the numbers below. Repeat this gradual tightening process until
all screws are fully tightened.
Install the face-up tray by fitting the notches of the tray over
the pins of the drive unit, as shown below. Notice that the
tray, when installed, is nearly vertical, as shown in the
illustration at the bottom of this page.
The printer is factory-set for face-down output on top of the
printer. To set the printer for face-up delivery, move the paper
path lever (located on the drive unit) to the FACE UP position as
shown below.
Option Specifications
Lower paper cassette
Cal2051
/C812061
Electrical
AC power supply:
DC 24V supplied by the printer
hsu&ion
resis&nce:
10M ohm minimum
Dielectrik
strength (between AC line and chassis )
Can withstand 3750 VAC rms for one
minute.
Power consumption:
4W or less
Paper and paper delivery
Size:
C812051: Letter (8.5 X 11.0 inches)
C&312061:
A4 (210 X 298 mm)
Weight:
Paper feed:
60 - 90 g/m
2
(16 - 24 lb.)
Automatic feed delivery system. Tray
capacity up to 250 sheets (75 g/m
2
or 20
lb. paper)
Feeding speed:
For first sheet, 25 seconds or less (A4 or
letter-size paper).
For subsequent sheets, 6 pages per minute
(letter-size paper) and 5.8 pages per minute
(A4-size paper).
Types:
Plain paper, such as copier paper, memo
sheets, and letterheads
Mechanical
Dimensions and weigh:
Without the printer:
Height:
95.7mm (3.7 inches)
Width:
487mm (19.1 inches)
Depth:
500 mm (19.6 inches)
Weight:
5.0 kg (11.0 lb.)
Face-up output tray C812071 / C812072
Dimensions and weight:
Without the printer:
Height:
198mm (7.7 inches)
Width:
311mm (12.2 inches)
Depth:
246 mm (9.6 inches)
Weight:
0.7 kg (1.5 lb.)
Paper eject capacity:
100 sheet (75 g/m
2
or 20 lb. paper)
EPL-7500-8
1/7/91
