Covers
There are five cover assemblies in this printer:
• AC Access Cover, located at the left rear of the printer.
• Back Cover, provides access to the HVPS, DC Controller, LVPS, and Main
Motor.
• Front Cover, including front access door.
• Left Lower Cover, located below the Diverter Access Door.
• Top Cover, provides access to the Face-Down Delivery Unit and
Laser/Scanner Assembly.
AC Access Cover
1 Remove the Formatter PCA.
2 Remove (3) screws, CH102 (Figure 6-3, callout 1).
To Reinstall:
1 Tuck the panel edge (Figure 6-3, callout 2) inside the back cover (if
installed).
2 Be sure that the three alignment tabs (Figure 6-3, callout 3) are inserted
into their slots before replacing the screws.

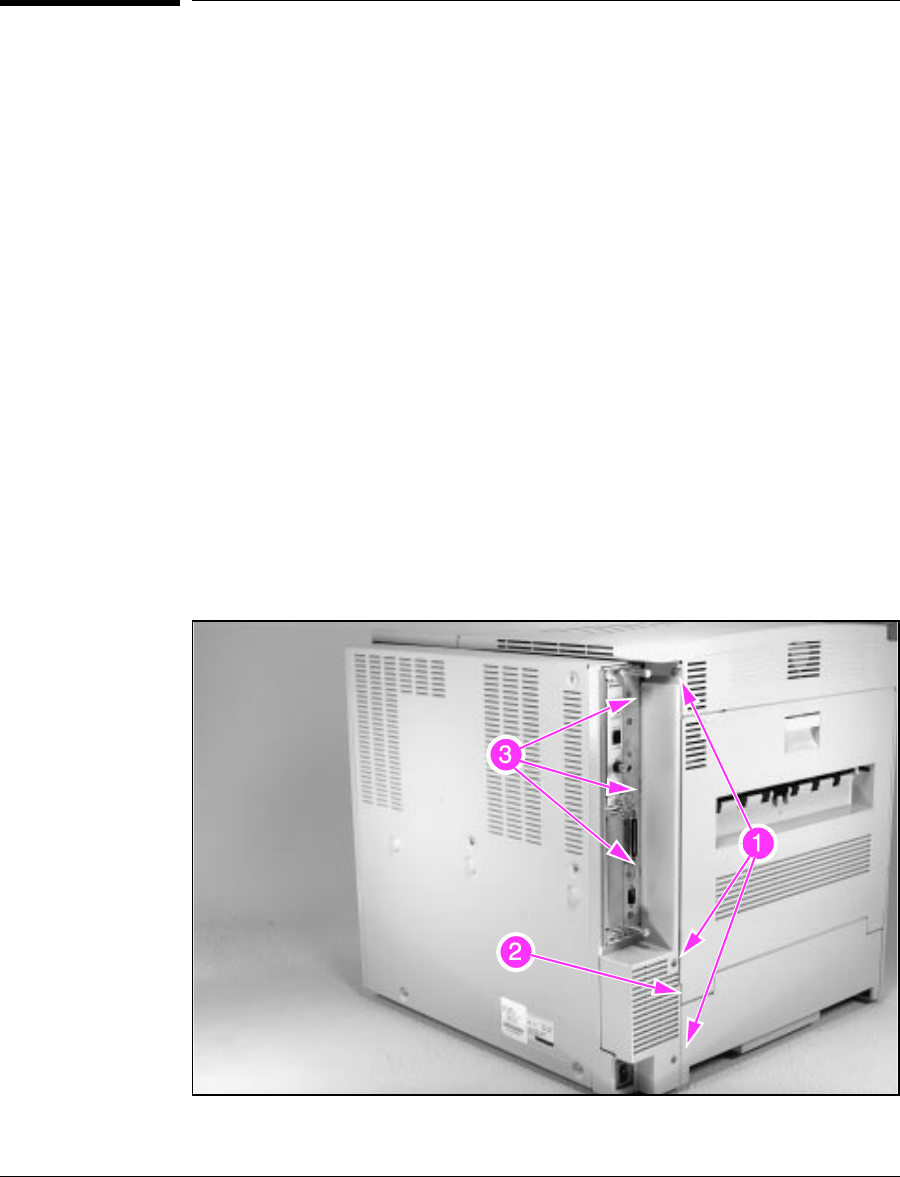

AC Access Cover
Figure 6-3
