HP DesignJet 5000 and 5500 Series Printers Service Manual

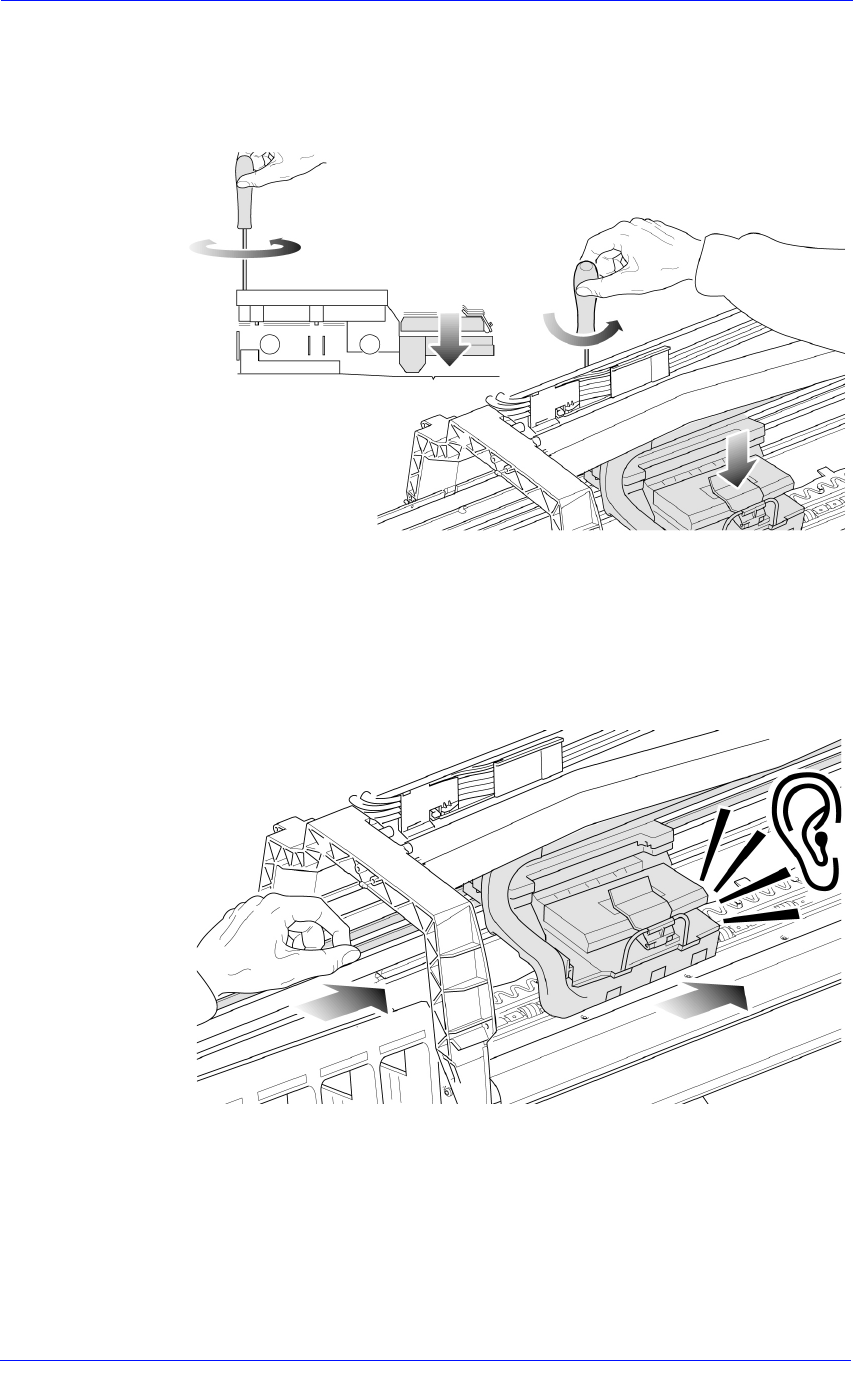

9. Lower the Carriage Assembly slightly, by turning the T9 screw
shown below anti-clockwise and then check for a scraping sound
again as shown previously in step 7.
10. On moving the Carriage Assembly along the length of the Printer
you should now hear a scraping sound: this sound indicates that you
need to raise the Carriage Assembly (if there is no sound repeat step
8).
