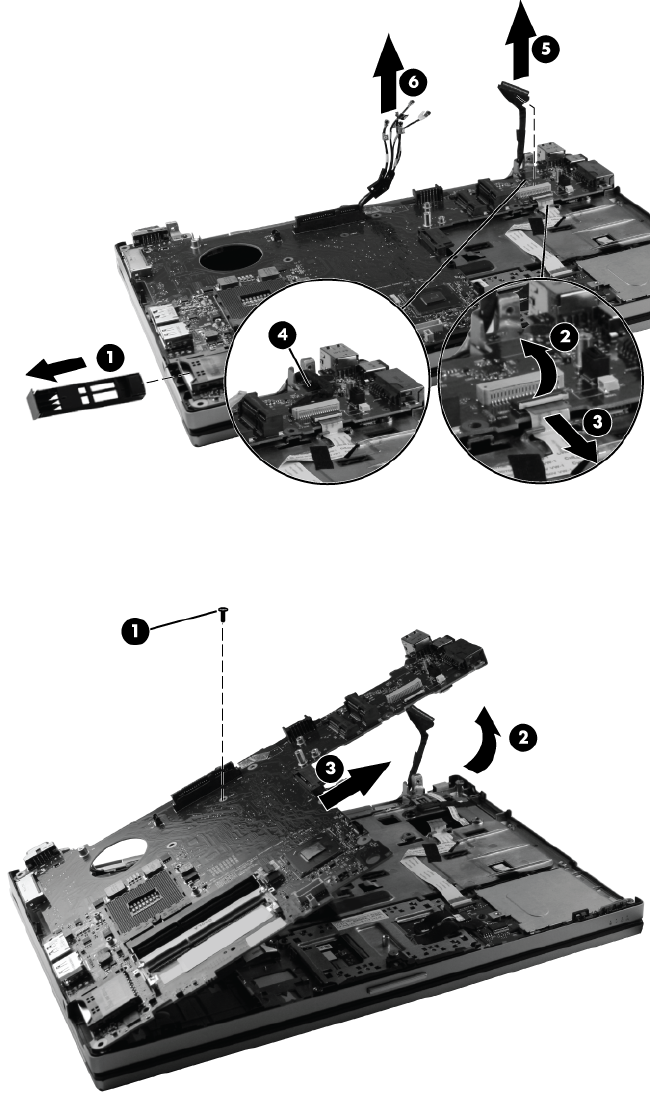

5. Pull the wireless cables (6) away from system board.
6. Remove the Phillips M2.0x4.0 screw (1) that secures the system board to the top cover. Use the
optical drive connector (2) to lift the left side of the system board until it rests at an angle, and
then remove the system board (3).
Reverse this procedure to install the system board.
70 Chapter 4 Removal and replacement procedures
