Chapter 6: Advanced Chassis Setup

6-7

6-5 Installing a 3.5" Device

The SC732 chassis has one 3.5" device slot, which supports an optional device,

such as an all-in-one card reader.

Installing a 3.5" Device

1. Remove the front bezel from the chassis by lifting it upwards from the bottom,

and pulling off the front of the chassis.

2. Remove the cover plate from the 3.5" device slot on the front of the chassis.

3. Install the bracket rail (A) onto one side of the 3.5" device, by inserting the

pins of the bracket into the mounting holes on the sides of the optical device.

4. Slide the 3.5" device into the chassis.

5. Replace the bezel by inserting the front bezel tabs into the mounting holes on

the front of the chassis.

1

4

1

3

1

2

1

1

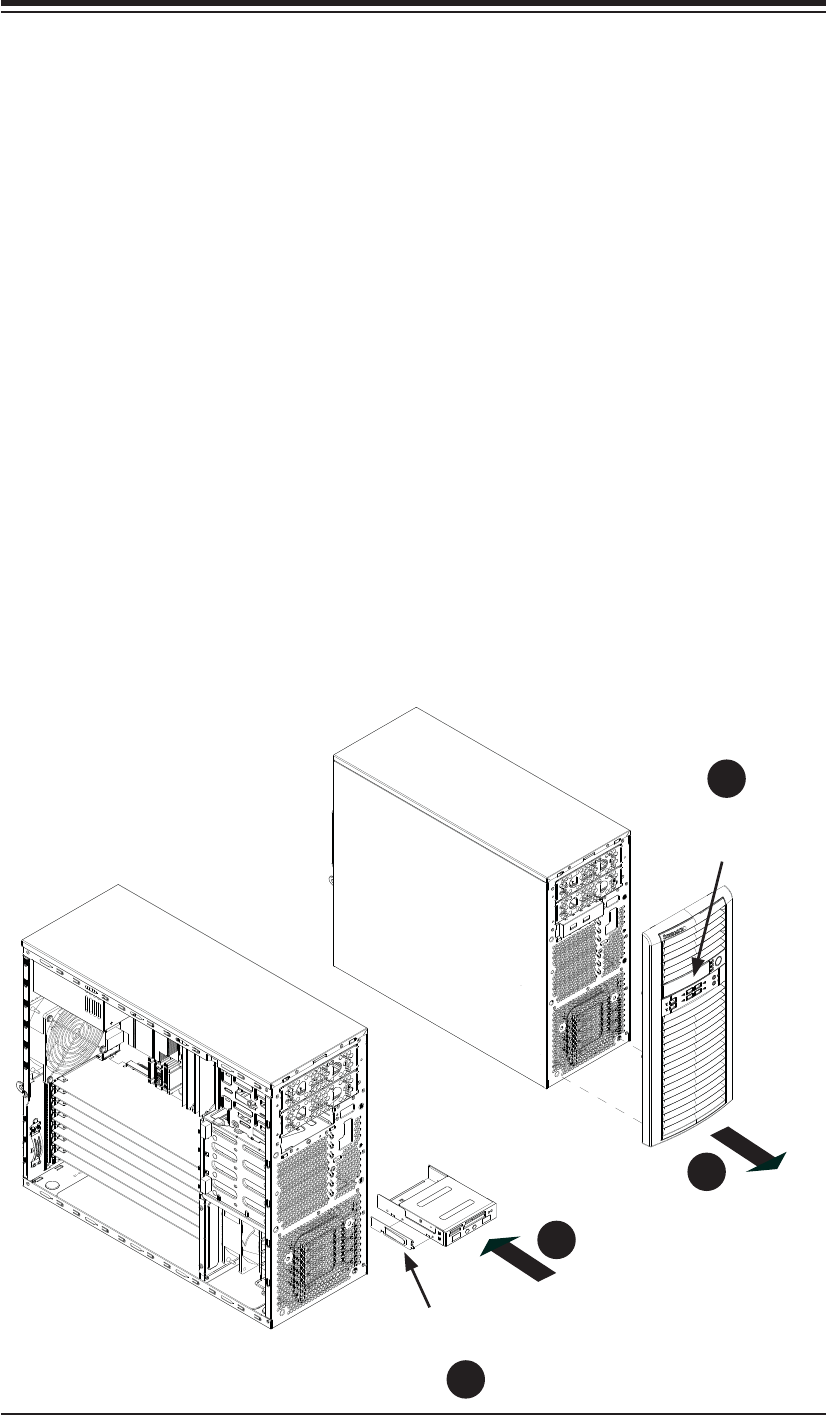

Figure 6-6. Installing a 3.5" Device

Bracket

Rail (A)

Remove

Cover Plate
