2-3 Front Jumper Locations and Pin Denitions
Explanation of Jumpers
To modify the operation of the backplane,
jumpers can be used to choose between
optional settings. Jumpers create shorts
between two pins to change the function
oftheconnector.Pin1isidentiedwith
a square solder pad on the printed circuit
board. Note: On two pin jumpers, "Closed"
means the jumper is on and "Open" means
the jumper is off the pins.
Connector
Pins
Jumper
Setting
3 2 1
3 2 1
Jumper Settings
Jumper Jumper Settings Note
JP35
Open: Default
Closed: Reset
MG9072 Chip Reset #1
JP50
Open: Default
Closed: Reset
MG9071 Chip Reset #2
JP18
Open: Default
Closed: Reset
*Buzzer Reset #2

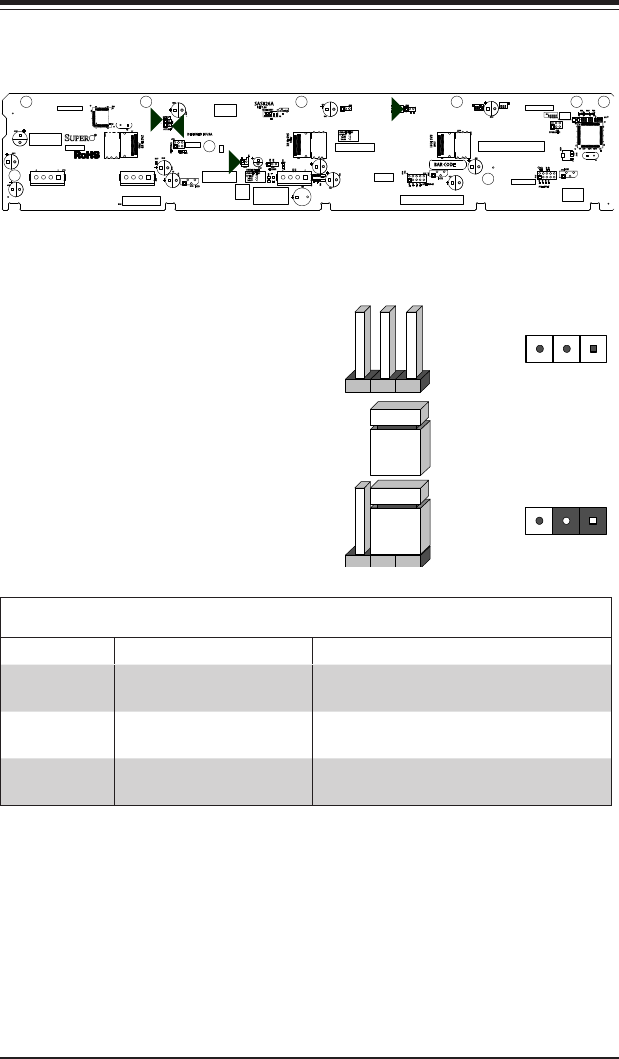

Figure 2-2: Front Jumpers
*The buzzer sound indicates that an overheat condition, a fan failure or a drive
failure has occurred.
