4-7
Chapter 4: Blade Module Features

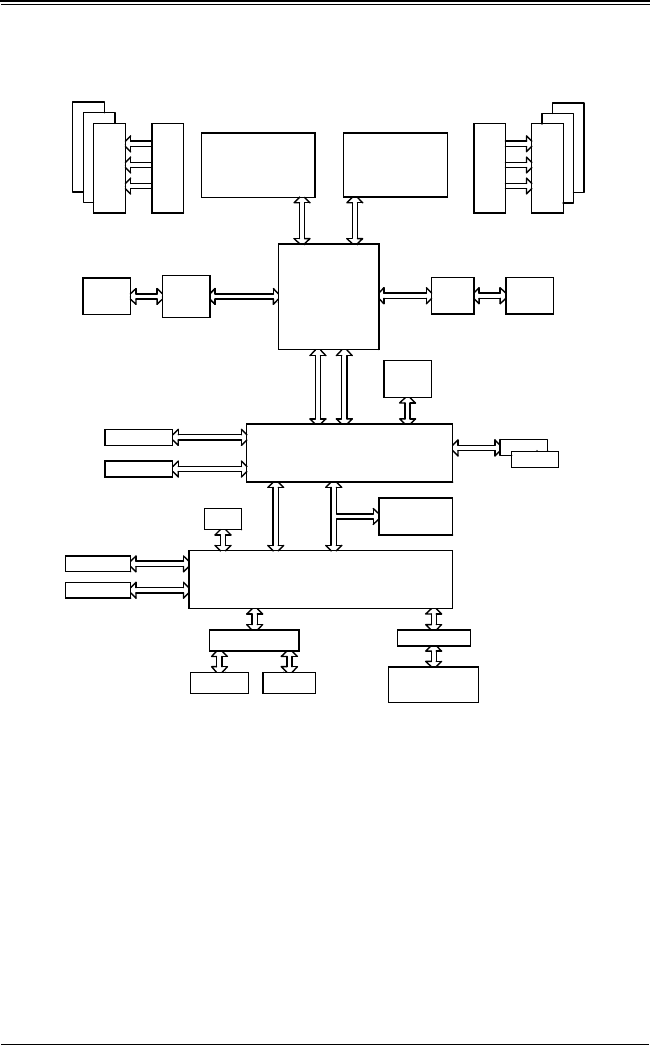

Figure 4-4. Intel 5500/IOH-24D Tylersburg + ICH10R Chipset: Block Diagram
for SBI-7226T-T2
Jumpers
The jumpers present on the mainboard are used by the manufacturer only; there are no
jumpers used to configure the operation of the mainboard.
CMOS Clear
JBT1 is used to clear CMOS and will also clear any passwords. JBT1 consists of two
contact pads located near the BIOS chip (#10 in Figure 4-3).
PROCESSOR#0
PROCESSOR#1
#1
DDR3 DIMM
#2
DDR3 DIMM
#1
#1
#1
DDR3 DIMM
#2
DDR3 DIMM
IOH
TYLERSBURG
24D
ICH10R
HERMON-BMC
VGA SWITCH
PCI
SATA #1
SATA
LPC
SST25
VF016
RTL8201N PHY
LPC_SIO
W83527
ACPI
CMM BMC-LAN
1-port
10/100MB
Kawela
82576
CMM LAN
2-port
GB
DDR II
USB-3/4/5
USB-0/1
PANEL-USB
CMM-USB
CMM-UART
UART0
UART1
PANEL-UART
PCI-E X8
IB
CMM
LAN
IB
SATA #2
#1
#1
CMM-VGA
PANEL-VGA
