2-6

SUPER X5DL8-GG/X5DLR-8G2+/X5DLR-8G2 User’s Manual

Mouse

(Green)

Keyboard

(Purple)

USB Ports

Parallel Port (Burgundy)

COM1 Port

(Turquoise)

VGA (Monitor)

Port (Blue)

LAN1 LAN2

Note: COM2 is a header on the motherboard (see motherboard layout for loca-

tion). The X5DLR-8G2+/X5DLR-8G2 does not have a parallel port.

2-4 IOPorts/Control Panel Connectors

The IO ports are color coded in conformance with the PC 99 specification.

See Figure 2-3 below for the colors and locations of the various IO ports.

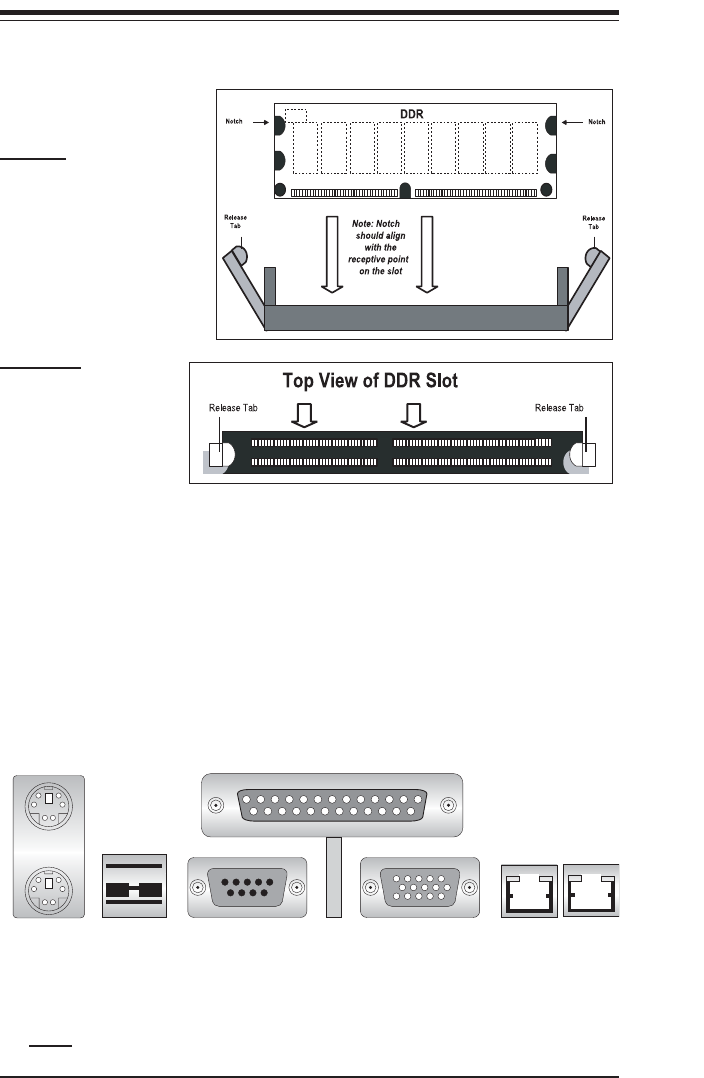

Figure 2-3. IO Port Locations and Definitions

To Remove:

Use your thumbs to

gently push near the

edge of both ends of

the module. This

should release it from

the slot.

Figure 2-2. Installing and Removing DIMMs

To Install:

Insert the module vertically

and press down until it

snaps into place. Pay atten-

tion to the notch on the bot-

tom of the module.
