Chapter 2: Installation
2-7
Front Control Panel
JF1 contains header pins for various front control panel connectors. These
connectors are designed for use with Supermicro server chassis. See
Figure 2-4 for the pin locations of the various front control panel buttons
and LED indicators. Refer to the following section for descriptions and pin
definitions. JF2 is an additional row of headers that provides connectors
for additional functions, as noted below.

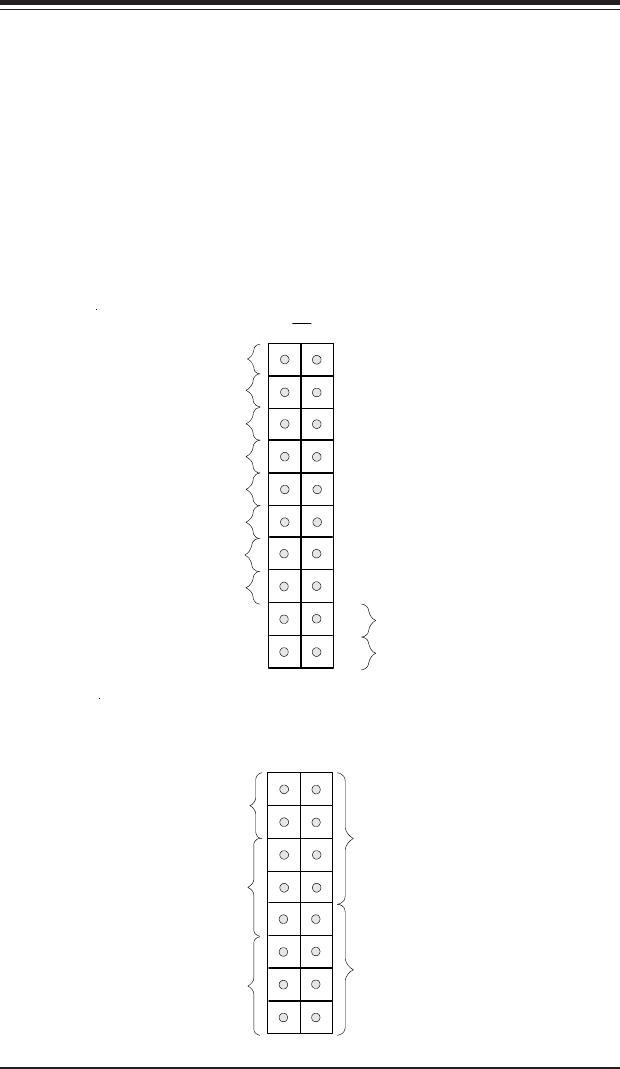

Figure 2-4. JF1/JF2 Header Pins
12
HD LED
1516
Power LED
X
Chassis Intrusion
Speaker
JF2
(X5DL8-GG only)
Power Button
Overheat LED
1
NIC1 LED
Reset Button
2
Power Fail LED
NIC2 LED
HDD LED
Power LED
Reset
Pwr
Vcc
Vcc
Vcc
Vcc
Vcc
Ground
Ground
1920
Vcc
X
Ground
NMI
X
JF1
