2-4 Control Panel Connectors/IO Ports
The I/O ports are color coded in conformance with the PC 99 specifi cation. See
Figure 2-3 below for the colors and locations of the various I/O ports.
A. Back Panel Connectors/IO Ports

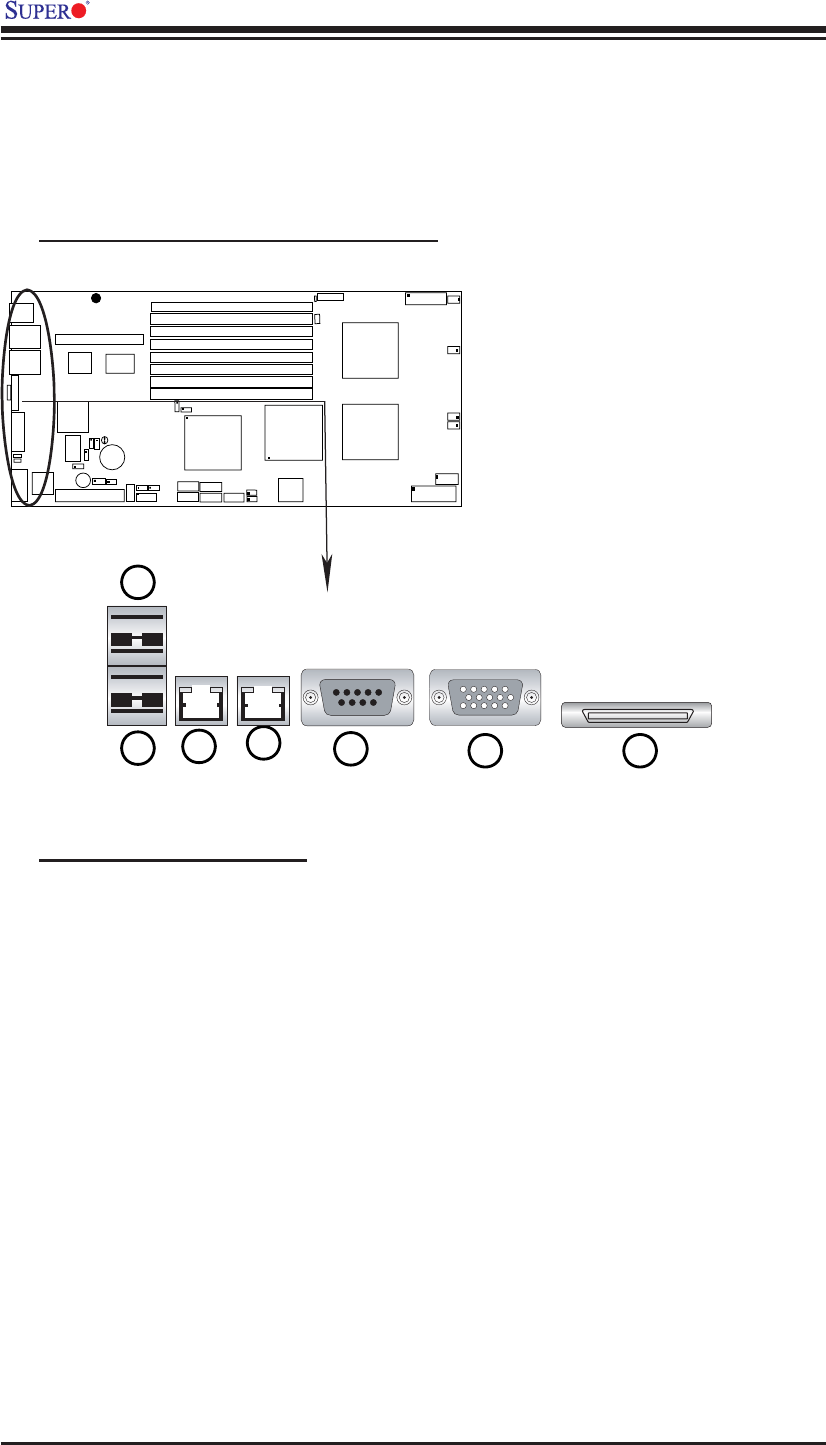

Figure 2-3. Back Panel I/O Port Locations and Defi nitions
Back Panel Connectors
1. Back Panel USB Port 0
2. Back Panel USB Port 1
3. Gigabit LAN 1
4. Gigabit LAN 2
5. COM Port 1 (Turquoise)
6. VGA Port (Blue)
7. Infi niBand Connector (*for
X7DBT-INF/X7DGT-INF only)
(*See Section 2-5 for details.)
1
2
3
4
5
6 7
