Chapter 2: Installation
2-29
1
JWD1
UID
VGA
JWP1:WRITE PROTECT
PWR I2C
U60
I-SATA0I-SATA1
JVGA1
JIPMB1
T-SGPIO2T-SGPIO1
JSD1
I-SATA5
I-SATA2
I-SATA4
I-SATA3
J1
J3
F6
JCOM2
J20USB1
SP1
LED2
LED1
LED3
U21
U7
U10
U22
U6
JDIMM1
JDIMM2
JCOM1
FAN2FA N3
FAN1
FAN4
U26
JPW1
JPI2C1
JPK1
U3
JTPM1
JLAN1JLAN2
MH7
MH6
MH2
MH4
JD1
JF1
JP1
JPUSB1
JPB1
JWP1
JL1JOH1
MH4
U57
X9SPV-F
JTPM1:TPM/PORT80
DOM POWER
P1-DIMMB1
USB8/9
IPMI
JSD1:SATA
COM2
USB6/7
LAN2/4
LAN1/3
P1-DIMMA1
COM1
USB4/5
KB/MOUSE
2-8 Serial ATA and HDD Connections
Note the following conditions when connecting the Serial ATA and hard disk drive
cables:
Be sure to use the correct cable for each connector. Refer to Page 1-1 for cables
that came with your shipment.
A
B
C
D
E
F
I-SATA0 (3.0)
I-SATA1 (3.0)
I-SATA2
I-SATA3
I-SATA4
I-SATA5
A
B
C
D
E
F

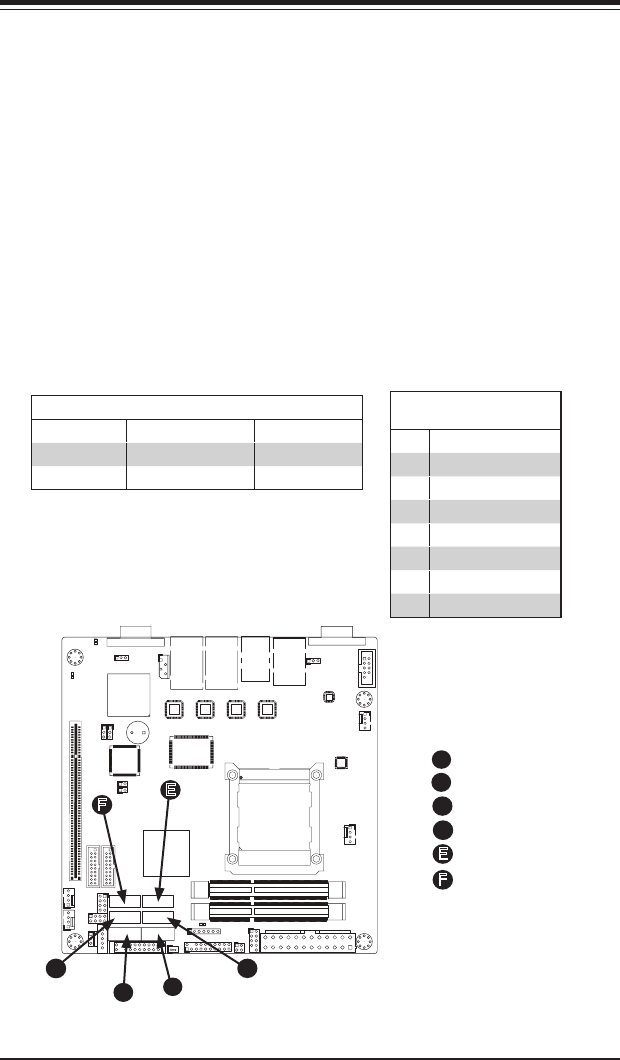

SATA Connections (SATA1~SATA6)
Two Serial ATA (SATA) 3.0 connectors (I-SATA 0/1) are located on the motherboard.
In addition, four SATA 2.0 (I-SATA 2~5) connectors are also located on the board.
The SATA 3.0 ports support RAID 0, 1 while the SATA 2.0 ports support RAID 0, 1,
5 &10. These Serial Link connections provide faster data transmission than legacy
Parallel ATA. See the table below for pin denitions.
SATA 2.0/3.0 Connectors
Pin Denitions
Pin# Signal
1 Ground
2 SATA_TXP
3 SATA_TXN
4 Ground
5 SATA_RXN
6 SATA_RXP
7 Ground
SATA Connector Types
Port# Connection Type Connector Color
SATA 0/1, SATA 3.0 White
SATA 2~5 SATA 2.0 Black
