TL-MR3020 Portable 3G/4G Wireless N Router
There are two submenus under the Advanced Routing menu as shown in Figure 4-67: Static
Routing List and System Routing Table. Click any of them, and you will be able to configure
the corresponding function.
4.12.1 Static Routing List
Choose menu “Advanced Routing → Static Routing List”, you can configure the static route
in the next screen (shown in Figure 4-68). A static route is a pre-determined path that network
information must travel to reach a specific host or network.

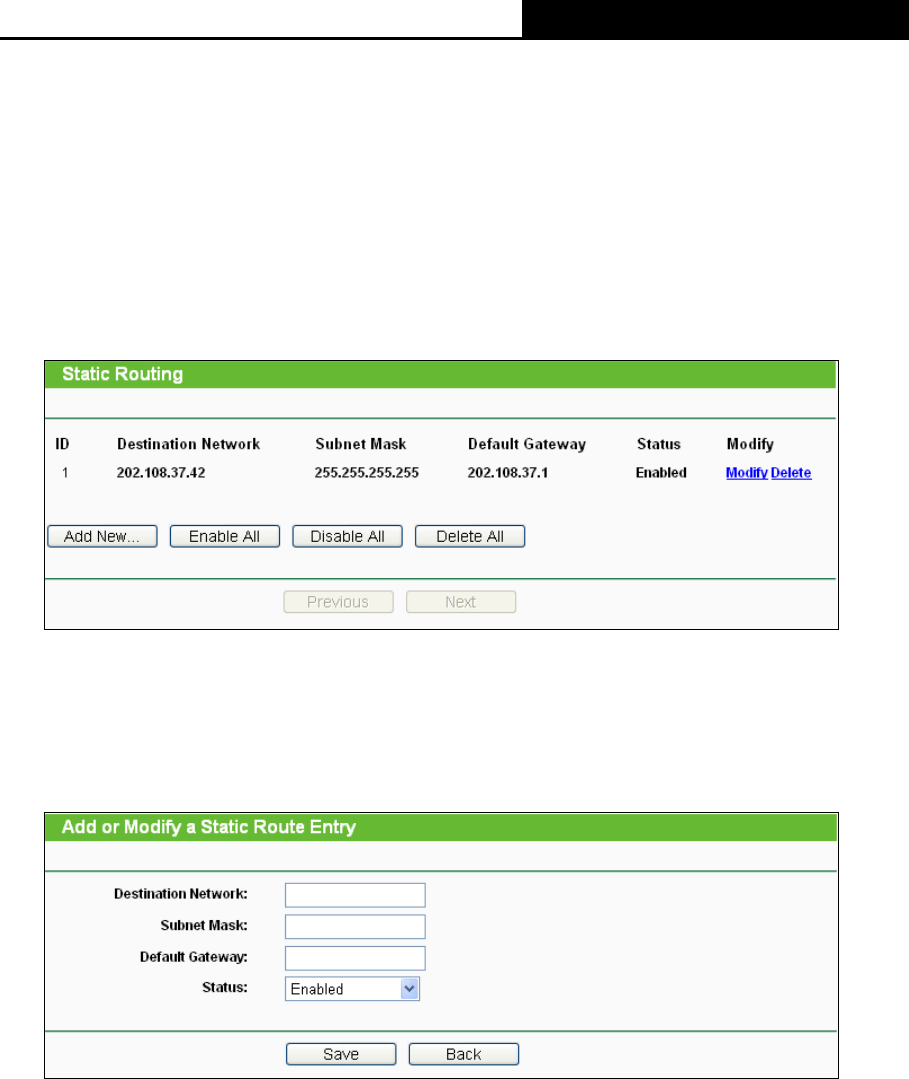

Figure 4-68 Static Routing
To add static routing entries:
1. Click Add New… shown in Figure 4-68, you will see the following screen.
Figure 4-69 Add or Modify a Static Route Entry
2. Enter the following data:
¾ Destination Network - The Destination Network is the address of the network or host
that you want to assign to a static route.
¾ Subnet Mask - The Subnet Mask determines which portion of an IP Address is the
network portion, and which portion is the host portion.
¾ Gateway - This is the IP Address of the gateway device that allows for contact between
the Router and the network or host.
3. Select Enabled or Disabled for this entry on the Status pull-down list.
-90-
