TL-WDR4900

N900 Wireless Dual Band Gigabit Router

- 88 -

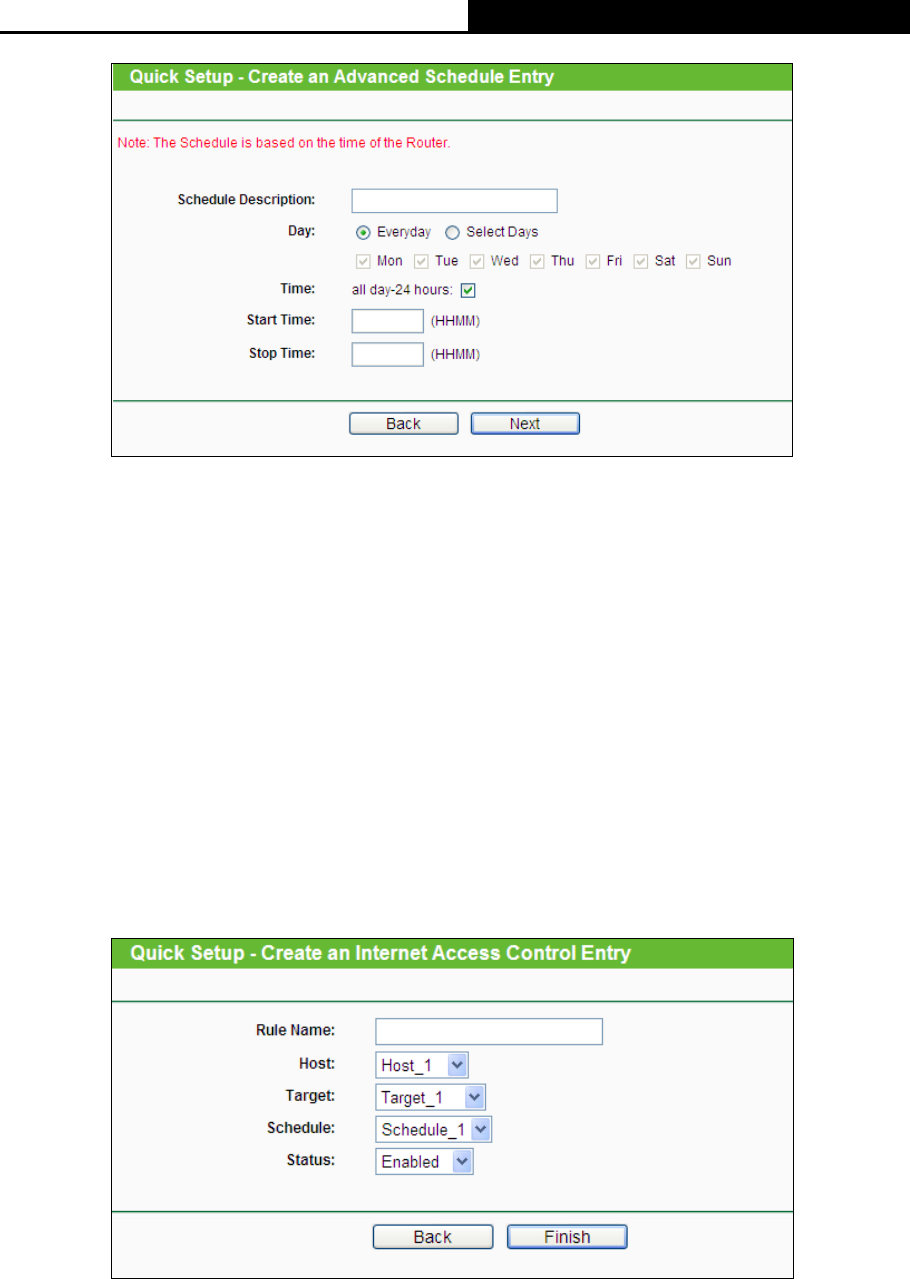

Figure 4-80 Quick Setup – Create an Advanced Schedule Entry

 Schedule Description - In this field, create a description for the schedule. Note that this

description should be unique (e.g. Schedule_1).

 Day - Choose Select Days and select the certain day (days), or choose Everyday.

 Time - Select "24 hours", or specify the Start Time and Stop Time yourself.

 Start Time - Enter the start time in HHMM format (HHMM are 4 numbers). For example

0800 is 8:00.

 Stop Time - Enter the stop time in HHMM format (HHMM are 4 numbers). For example

2000 is 20:00.

4. Click Next when finishing creating the advanced schedule entry, and the next screen will

appear as shown in Figure 4-81.

Figure 4-81 Quick Setup – Create an Internet Access Control Entry

 Rule - In this field, create a name for the rule. Note that this name should be unique (e.g.

Rule_1).
