ASSEMBLY INSTRUCTIONS

10

L

R

STEP 9

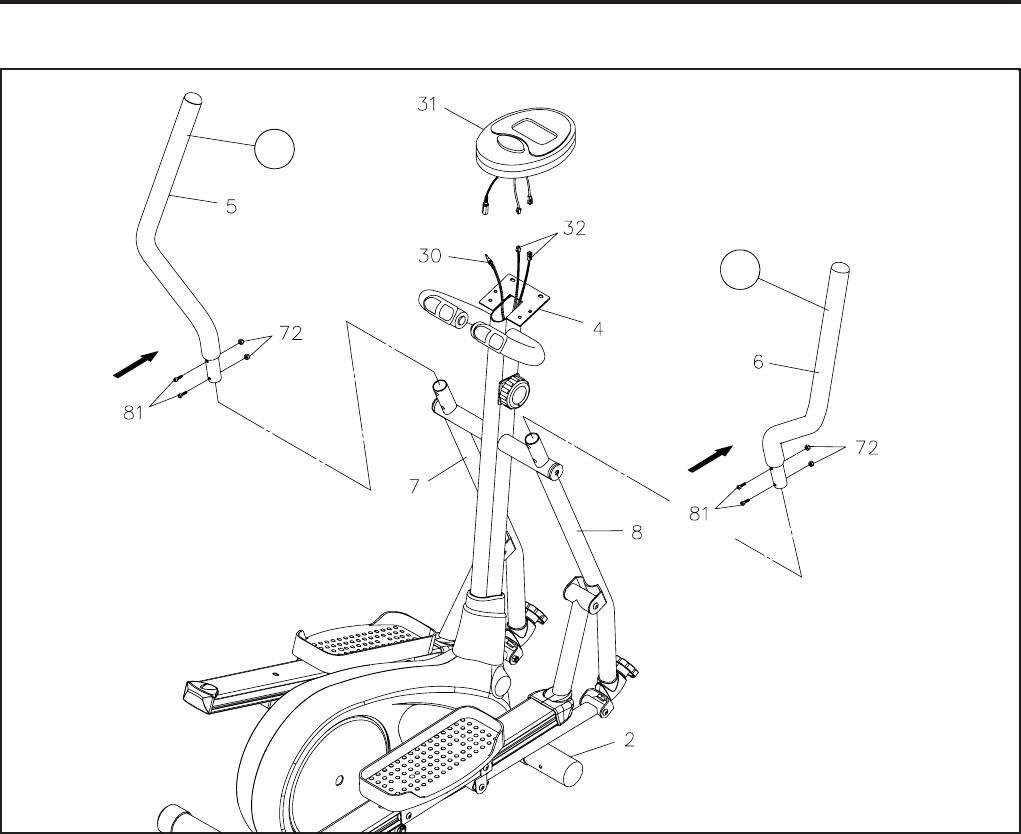

There is a "L" decal on the LEFT HANDLEBAR(5), and a "R" decal on the RIGHT HANDLEBAR(6).

Attach the LEFT and RIGHT HANDLEBARS(5, 6) onto the LEFT and RIGHT PIVOTING ARMS(7, 8)

with SOCKET HEAD BOLTS(M6 x 35mm)(81) and NYLOCK NUTS(M6)(72).

NOTE:

STEP 10

Install two "AA" batteries into the METER(31), two batteries included. Plug the CONNECTION WIRE(30)

and the PULSE SENSOR WIRES(32) into the METER(31). Slide the METER(31) onto the plate on

the

UPRIGHT(4).

NOTE:

Assemble the SOCKET HEAD BOLTS(M6 x 35mm)(81) following the direction as shown by

the arrows. The Bolt Heads must go through the holes on the

PIVOTING ARMS(7, 8) to attach

the

HANDLEBARS(5, 6).

Be careful not to damage the wires when attaching the METER(31).

See page 15 for detailed battery installation instructions.

1.

2.
