SET UP INSTRUCTIONS
LEVELING:
MOVING:
Equipment Mat

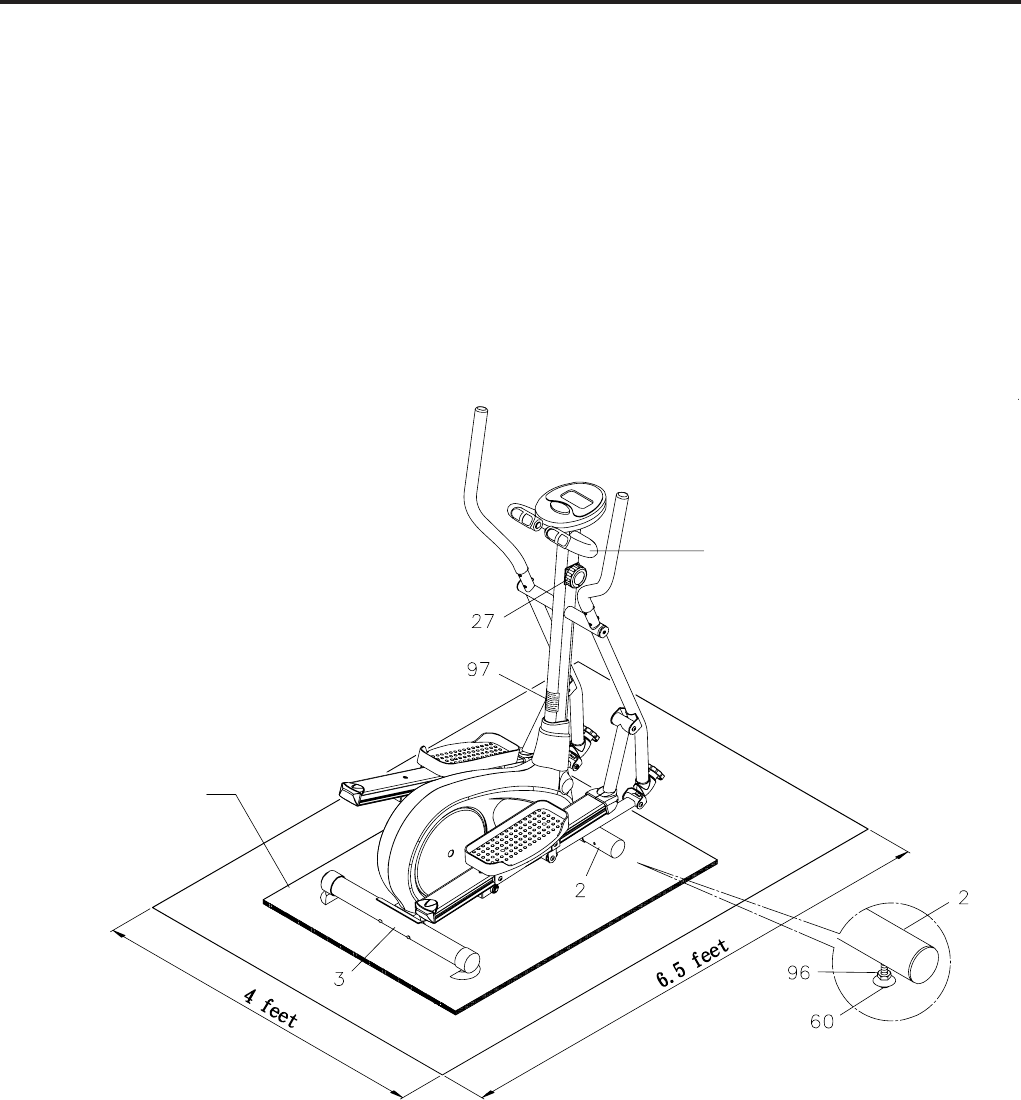

Place the Elliptical / Stepper in the area where it will be used. It is recommended that the Elliptical /
Stepper be placed on an equipment mat. The max. operation dimensions of Elliptical / Stepper are
approximately 53 1/2" long x 28" wide x 61 3/8" tall. (These dimensions may vary up to one inch.) An area
4 feet wide x 6.5 feet long is required for safe operation of the
Elliptical / Stepper. Make sure that adequate
space is available for access to and passage around the
Elliptical / Stepper.
Adjust the LEVELING STANDS(60) under the FRONT STABILIZER(2) so that the
Elliptical / Stepper sets on the floor without rocking. Refer the instructions below the
illustration.
Grasp the
REAR STABILIZER(3) and STATIONARY HANDLEBAR to lift the Elliptical
/ Stepper to move. Two people are required.
Locate and read the
WARNING LABEL(97) on the Elliptical / Stepper. Make sure that all
users read the
WARNING LABEL(97).
CAUTION:
11
FUNCTION INSPECTION:
Visually inspect the Elliptical / Stepper to verify that assembly is as shown in the above illustration. Check
the function of the
Elliptical / Stepper. Stand on the foot pedals and place your hands at a comfortable
position on the handlebars. Slowly move your highest foot forward and follow the natural path of the machine.
Turn the crank slowly through one complete revolution to verify that the drive train functions properly. Adjust
the
TENSION KNOB(27) and verify that it functions properly.
Stationary Handlebar
Loosen the NUTS(M8)(96) to touch the
LEVELING STANDS(60). Adjust the LEVELING
STANDS(60) for leveling. Tighten the NUTS(M8)
(96) securely against the FRONT STABILIZER
(2) to lock the stand in position.
