.Bail lever
Control ,Ll W
Power cord conndr ‘\

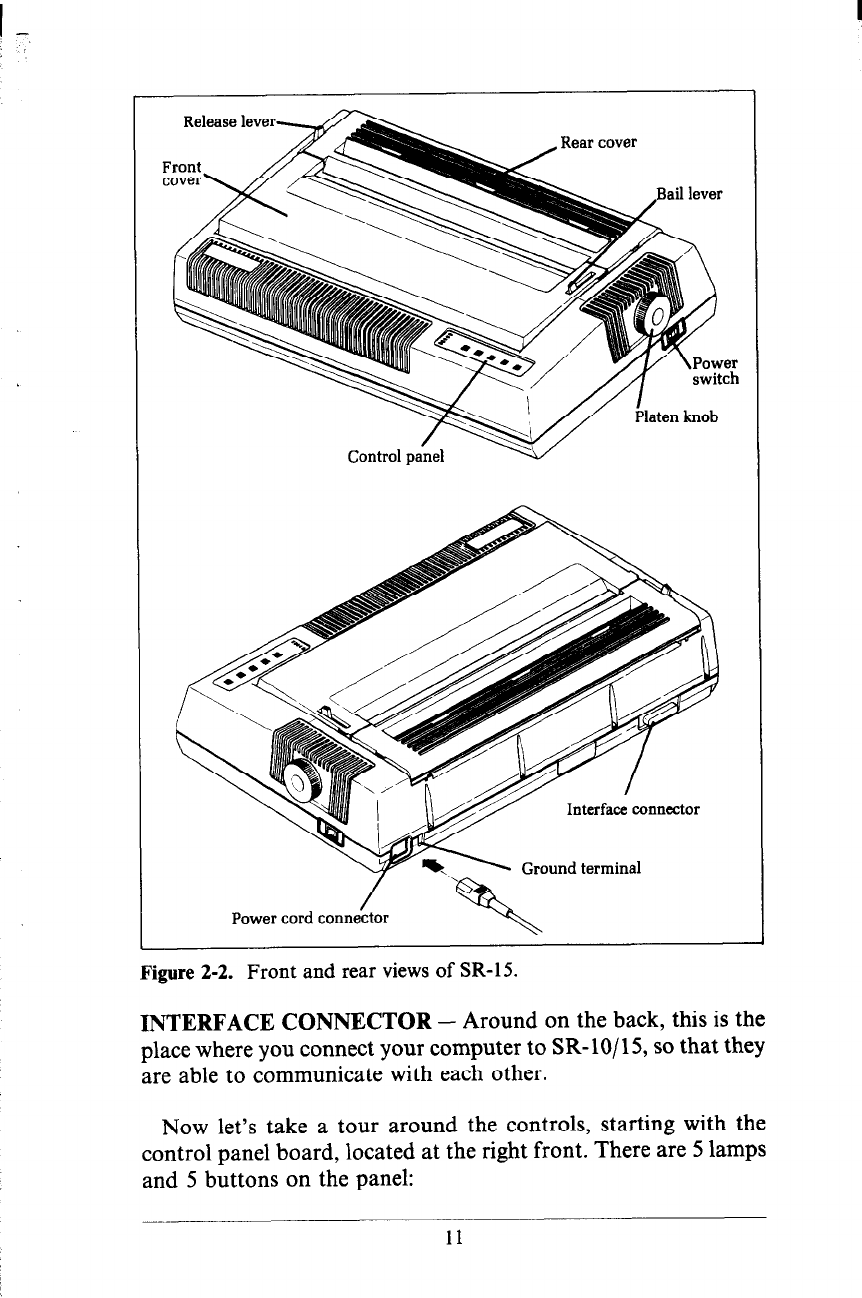

Figure 2-2. Front and rear views of SR-15.
INTERFACE CONNECTOR - Around on the back, this is the
place where you connect your computer to SR-10/15, so that they
are able to communicate with each other.
Now let’s take a tour around the controls, starting with the
control panel board, located at the right front. There are 5 lamps
and 5 buttons on the panel:
--.-____
