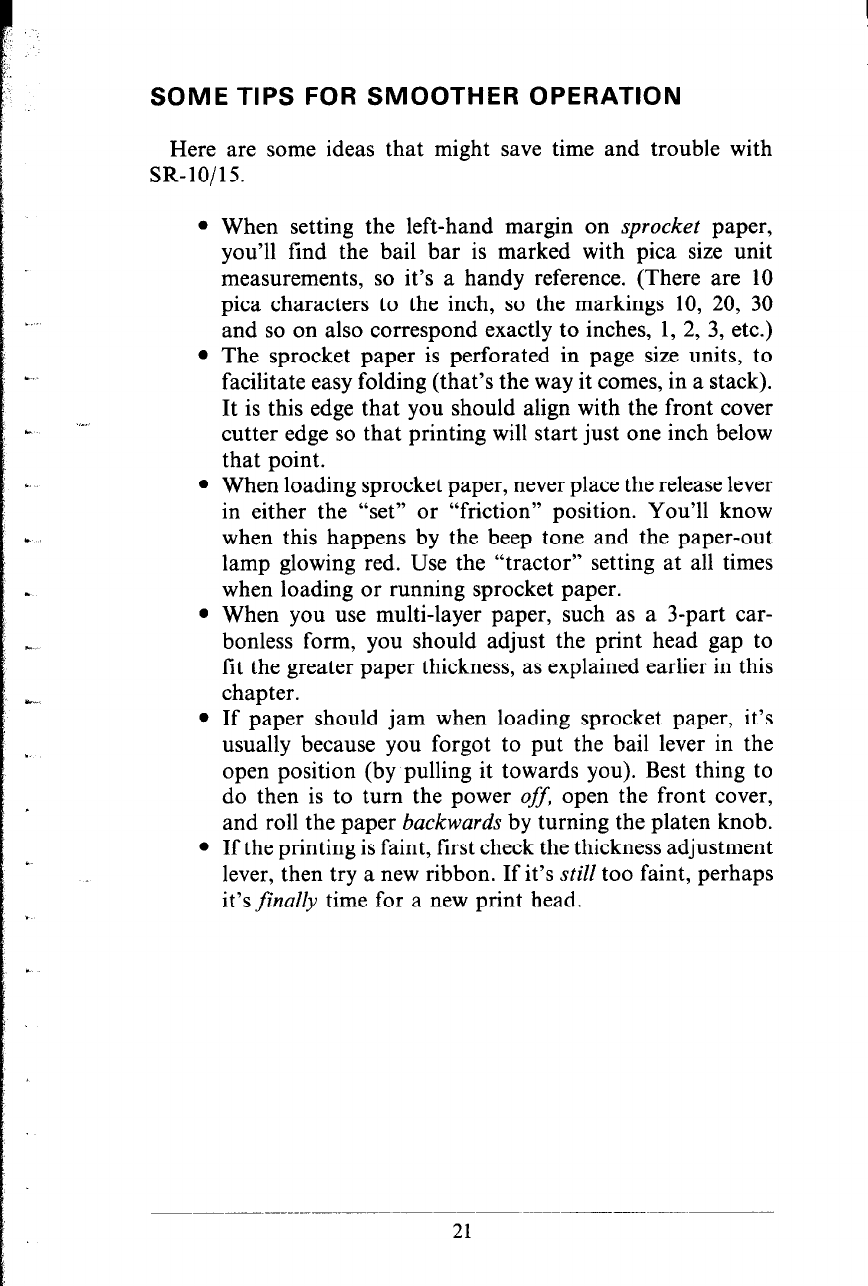

SOME TIPS FOR SMOOTHER OPERATION
Here are some ideas that might save time and trouble with
SR-10/15.
l When setting the left-hand margin on sprocket paper,
you’ll find the bail bar is marked with pica size unit
measurements, so it’s a handy reference. (There are 10
pica characters to the inch, so the markings 10, 20, 30
and so on also correspond exactly to inches, 1, 2, 3, etc.)
l The sprocket paper is perforated in page size units, to
facilitate easy folding (that’s the way it comes, in a stack).
It is this edge that you should align with the front cover
cutter edge so that printing will start just one inch below
that point.
l When loading sprocket paper, never place the release lever
in either the “set” or “friction” position. You’ll know
when this happens by the beep tone and the paper-out
lamp glowing red. Use the “tractor” setting at all times
when loading or running sprocket paper.
l When you use multi-layer paper, such as a 3-part car-
bonless form, you should adjust the print head gap to
lit the greater paper thickness, as explained earlier in this
chapter.
l If paper should jam when loading sprocket paper, it’s
usually because you forgot to put the bail lever in the
open position (by pulling it towards you). Best thing to
do then is to turn the power off, open the front cover,
and roll the paper backwards by turning the platen knob.
l If the printing is faint, first check the thickness adjustment
lever, then try a new ribbon. If it’s still too faint, perhaps
it’s finally time for a new print head.
21
