Tesla M2090 Dual-Slot Computing Processor Module BD-05766-001_v02 | 4
MECHANICAL SPECIFICATIONS
PCI EXPRESS SYSTEM
The Tesla M2090 computing processor board (Figure 2) conforms to the PCI Express full
height (4.376 inches by 9.75 inches) form factor. Figure 2 is shown without the bracket.

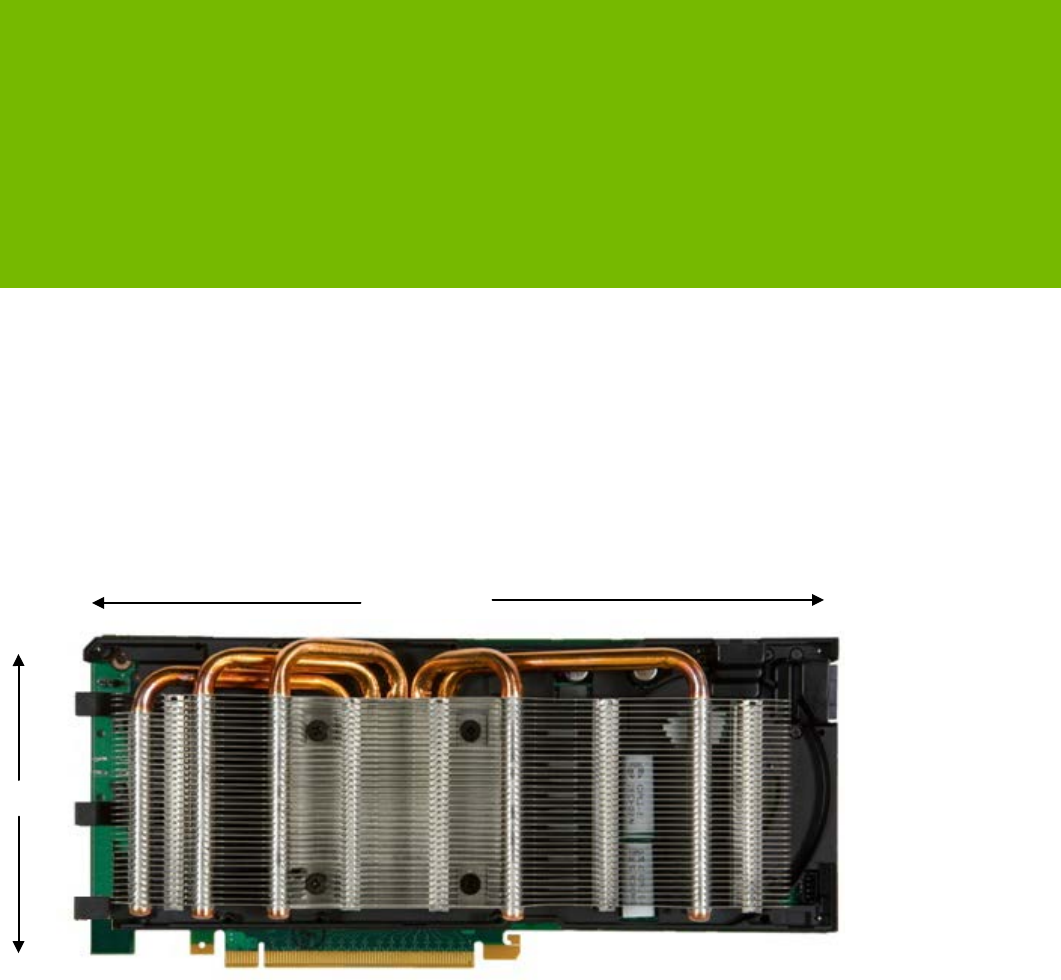

Figure 2. Tesla M2090 Computing Processor Module
4.376 inches
9.75 inches
