Chapter 2: Installation
2-23
BMC Enable/Disable (JPB1)
JPB1 is used to enable or disable the
BMC (Baseboard Management Control)
chip and the onboard IPMI connec-
tion. This jumper is used together with
the IPMI settings in the BIOS. See the
table on the right for jumper settings.
Supported on both the X9SPV-F and
X9SPV-LN4F.
BMC IPMI Enable/Disable
Jumper Settings
Settings Denition
Pins 1-2 Enabled (Default)
Pins 2-3 Disabled
1
JWD1
UID
VGA
JWP1:WRITE PROTECT
PWR I2C
U60
I-SATA0I-SATA1
JVGA1
JIPMB1
T-SGPIO2T-SGPIO1
JSD1
I-SATA5
I-SATA2
I-SATA4
I-SATA3
J1
J3
F6
JCOM2
J20USB1
SP1
LED2
LED1
LED3
U21
U7
U10
U22
U6
JDIMM1
JDIMM2
JCOM1
FAN2FAN3
FAN1
FAN4
U26
JPW1
JPI2C1
JPK1
U3
JTPM1
JLAN1JLAN2
MH7
MH6
MH2
MH4
JD1
JF1
JP1
JPUSB1
JPB1
JWP1
JL1 JOH1
MH4
U57
X9SPV-F
JTPM1:TPM/PORT80
DOM POWER
P1-DIMMB1
USB8/9
IPMI
JSD1:SATA
COM2
USB6/7
LAN2/4
LAN1/3
P1-DIMMA1
COM1
USB4/5
KB/MOUSE

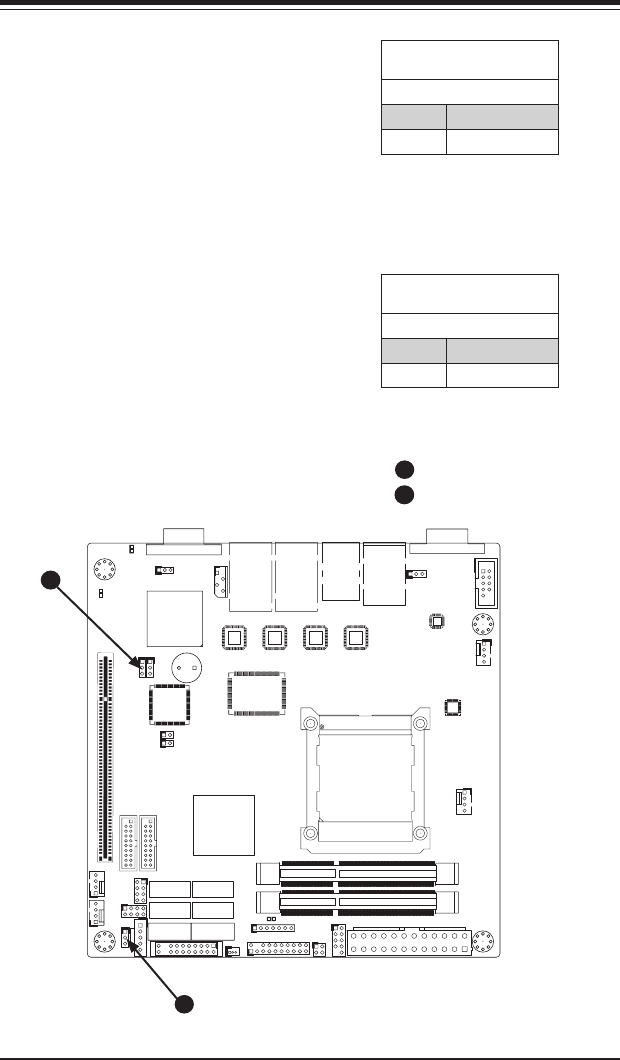

B
A
BMC Enable/Disable
BIOS Write-Protect
A
B
BIOS Write Protect (JWP1)
The BIOS Write-Protect jumper (JWP1)
is used to protect the BIOS rmware from
accidentally being erased. Close pins
2-3 before reprogramming the rmware.
Otherwise, we recommend that it is en-
abled (pins 1-2) during normal operation.
BMC IPMI Enable/Disable
Jumper Settings
Settings Denition
Pins 1-2 Enabled (Default)
Pins 2-3 Disabled
