2-37
JBT1
1
DP5
A
JPI2C1
CNF1
USB6/7
JLPC80
VGA (Top)
AUDIO
JPI1
JPG1
JWD1
JPT1
JPW2
JPW3
JPW1
SP1
FAN2
FAN6
FAN5
J14
JBAT1
JOH1
JL1
JI2C2
JI2C1
JD1
KB/MS
CD1
JIDE1
USB
2/3/4/5
JUSB2
SMBUS1
ALWAYS POPULATE DIMM1 FIRST
Slot7 PCI-E 2.0 x8
FAN3
FAN1
P2 DIMM3A
P2 DIMM3B
P2 DIMM2B
P2 DIMM2C
P2 DIMM2A
P2 DIMM3C
P2 DIMM1B
P2 DIMM1C
P2 DIMM1A
P1 DIMM3C
P1 DIMM3B
P1 DIMM2C
P1 DIMM2B
P1 DIMM1C
P1 DIMM1B
P1 DIMM3A
P1 DIMM2A
P1 DIMM1A
ALWAYS POPULATE DIMM1 FIRST
CPU2 FAN
FLOPPY
IDE
I-SATA5
I-SATA4
I-SATA3
I-SATA2
I-SATA1
Slot6 PCI-E 2.0 x16
Slot5 PCI-E 2.0 x4 (in x8 Slot)
Slot4 PCI-E 2.0 x8 (in x16 Slot)
Slot3 PCI-E 2.0 x8
Slot2 PCI-E 2.0 x16
LAN2 (Top)
COM1
(Bottom)
I-SATA0
PWR I2C
CPU1
CPU2
USB0/1
LAN1
COM2
Slot1 PCI-E 2.0 x8
DP4
CNF2
BIOS
FAN4
FPCTL
JF1
FAN7
FAN1
CPU
LAN
CTRL
BMC
Audio
CTRL
BMC
Firmware
CTRL
Intel
IOH-36D
Intel
ICH 10R
Intel
(SouthBridge)
X8DAH+
AUDIO
Header
7.1HD
BMC Graphics
Memory
S I/O
1394
CTRL
1394-1 1394-2
IPMI LAN
PHY
Chip
JPL1
J15
J139
JP4
JP5
JUSB5
JUSB4
Rev. 2.01
IOH-36D
(Bottom)
JP9
I-FAN1
I-FAN2
A

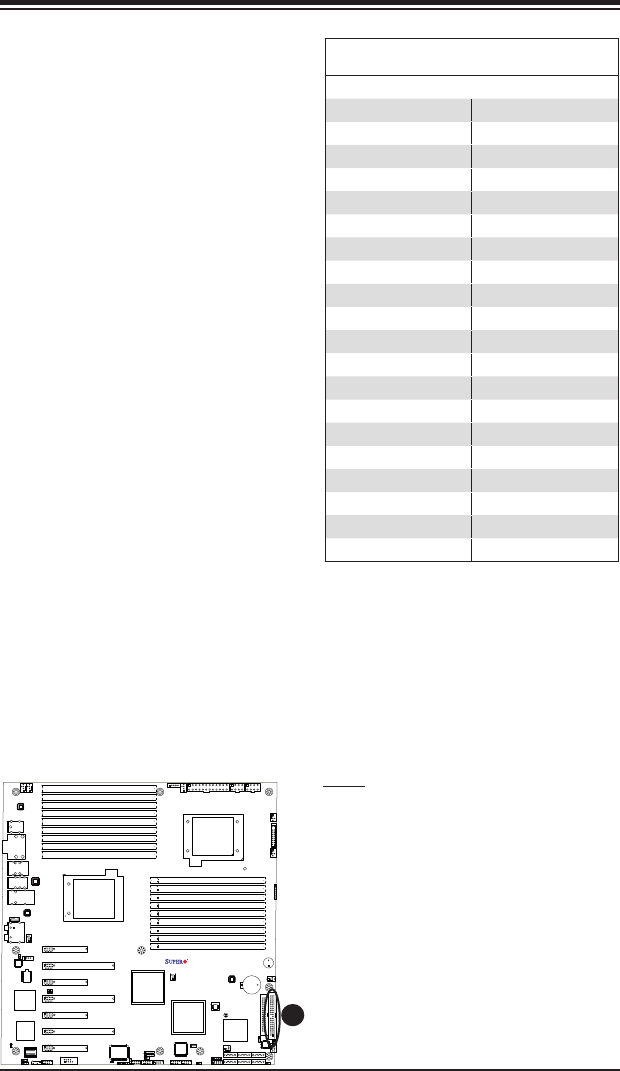

IDE Drive Connector
PinDenitions
Pin# Denition Pin # Denition
1 Reset IDE 2 Ground
3 Host Data 7 4 Host Data 8
5 Host Data 6 6 Host Data 9
7 Host Data 5 8 Host Data 10
9 Host Data 4 10 Host Data 11
11 Host Data 3 12 Host Data 12
13 Host Data 2 14 Host Data 13
15 Host Data 1 16 Host Data 14
17 Host Data 0 18 Host Data 15
19 Ground 20 Key
21 DRQ3 22 Ground
23 I/O Write 24 Ground
25 I/O Read 26 Ground
27 IOCHRDY 28 BALE
29 DACK3 30 Ground
31 IRQ14 32 IOCS16
33 Addr1 34 Ground
35 Addr0 36 Addr2
37 Chip Select 0 38 Chip Select 1
39 Activity 40 Ground
IDE Connector
AN IDE Connector is located on the
motherboard. This connector can be
used for a Compact Flash card. To use
a Compact Flash card on this connec-
tor, you will need to enable the jumper
located at JPIDE1. See the table on the
right for pin denitions.
A. IDE
