KNOW YOUR PRESSURE WASHER
The safe use of this product requires an understanding of the information on the tool and in this
operator’s manual as well as a knowledge of the project you are attempting. Before use of this

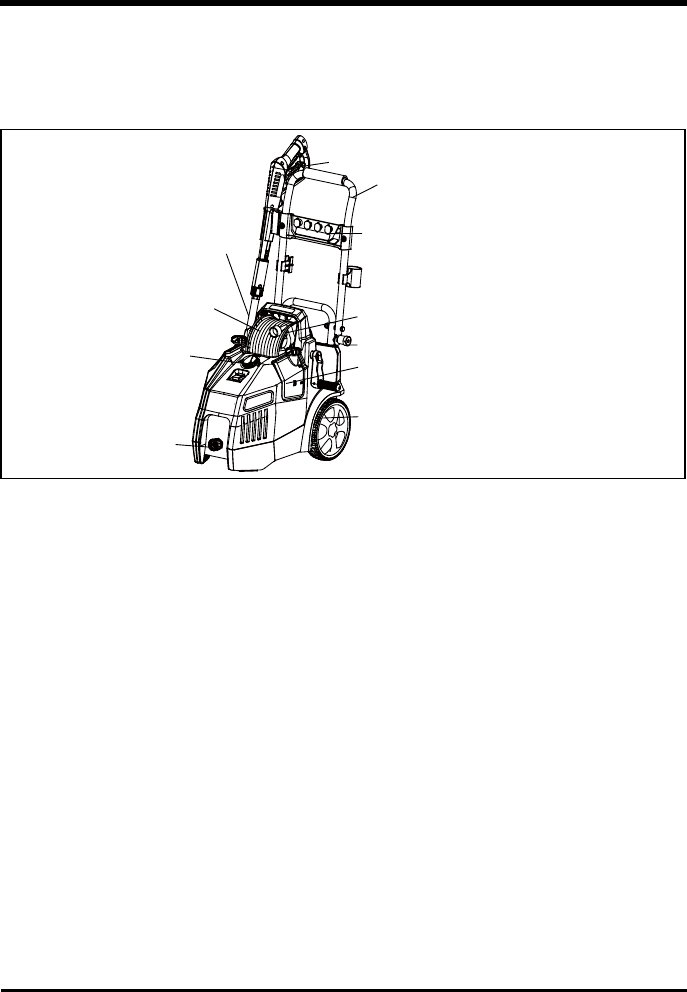

product, familiarize yourself with all operating features and safety rules. (See Figure 2.)
Fig. 2
DETERGENT TANK
Remove the cap from the detergent tank to add detergent to the pressure washer.
GFCI PLUG
The pressure washer is equipped with a GFCI plug to guard against the hazards of ground fault
currents. This plug does not protect against short circuits, overloads, or shocks.
HIGH PRESSURE HOSE STORAGE REEL
A convenient hose reel stores the high pressure hose when the pressure washer is not in use.
ON / OFF SWITCH
This switch turns the pressure washer on and off.
POWER CORD STORAGE REEL
Store the power cord on the convenient storage reel when the pressure washer is not in use.
Rotate the reel face counter-clockwise and remove for quick release of the cord.
FOLDING HANDLE
The folding handle allows the handle to be lowered for convenient storage.
TRIGGER HANDLE
The trigger handle has a gripping surface that provides added control of the spray wand and
helps reduce fatigue.
TRIGGER WITH LOCK-OUT
Pulling the trigger releases a stream of water for high pressure cleaning. The lock-out provides
protection against unauthorized use.
Spray wand
High pressure hose
Detergent tank
Wheels
High pressure hose storage reel
On/Off switch
Water hose intake
Trigger
Handle assembly
Nozzle storage bar
Release button
