ASSEM BLY

OPERATING THE HANDLE ASSEMBLY

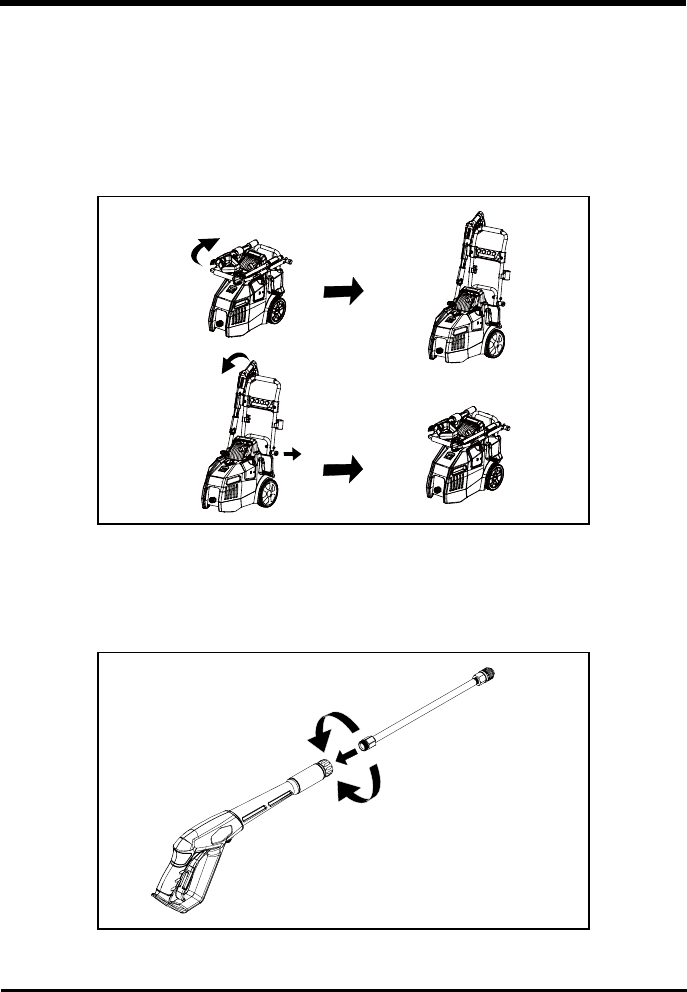

(See Figure 3.)

• Open for use: Lift up on the handle bar pivoting it towards the back into an upright position

until it clicks and locks into place.

• Pull the latch on the handle assembly out sideways and lift up the handle until it clicks into

place.

• To fold the handle, pull the latch sideways again, and push the handle down.

ASSEMBLING THE SPRAY WAND (

See Figure 4.)

• Push the end of the spray wand into the trigger handle and rotate clockwise to secure.

• Pull on the spray wand to be certain it is properly secured.

• Place the assembled spray wand in the spray wand holder.

Fig. 4

Fig. 3

OPEN

CLOSE
