OPERATION

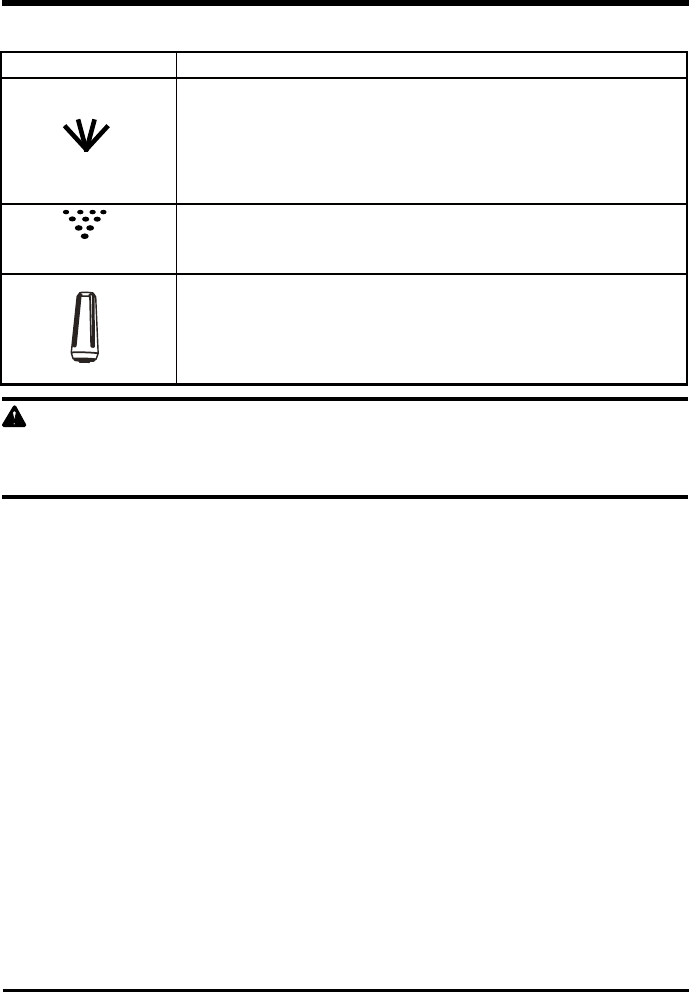

White - Wide fan tip (40° )
• The white 40 degree tip, referred to as the “fan” tip creates the
widest area of cleaning with relatively low pressure. This pressure
washer tip is best used for light or delicate cleaning applications. It
is recommended for light cleaning on wood decks and other soft or
delicate surfaces.
Black - Soap nozzle tip (75° )
• The black 75 degree tip, referred to as the low pressure nozzle. This
is for use with soap application.
Turbo Nozzle Tip
• The nozzle rotates in a zero degree spray pattern in a circular
motion to break down tough dirt and grime. The spray pattern can
cover area of 4 to 8 inches wide, depending on a distance between
the tip and the surface being cleaned.
NOZZLE APPLICATION
WARNING
NEVER change nozzles without engaging the lock-out on the trigger handle and NEVER point the
wand at your face or at others. The quick-connect feature contains small springs that could eject
the nozzle with some force. Failure to heed this may cause personal injury.
• Turn off the pressure washer and shut off the water supply.Pull trigger to release water
pressure.
• Engage the lock-out on the trigger handle by pushing the trigger lock button to the right.
• Pull back the quick-connect collar.
• Push the nozzle into place in the spray wand.
• Push the collar forward so that the nozzle is secured properly. Check to see that the nozzle is
secure.
TO DISCONNECT A NOZZLE FROM THE TRIGGER HANDLE ONCE THE CLEANING JOB IS
COMPLETE:
• Turn off the pressure washer and shut off the water supply. Pull trigger to release water
pressure.
• Engage the lock-out on the trigger handle by pushing the trigger lock button to the right.
• Remove the nozzle by placing hand over nozzle then pulling back the quick-connect collar.
Place nozzle in the nozzle storage area on the trigger handle.
