C2SEA/C2SEE User's Manual

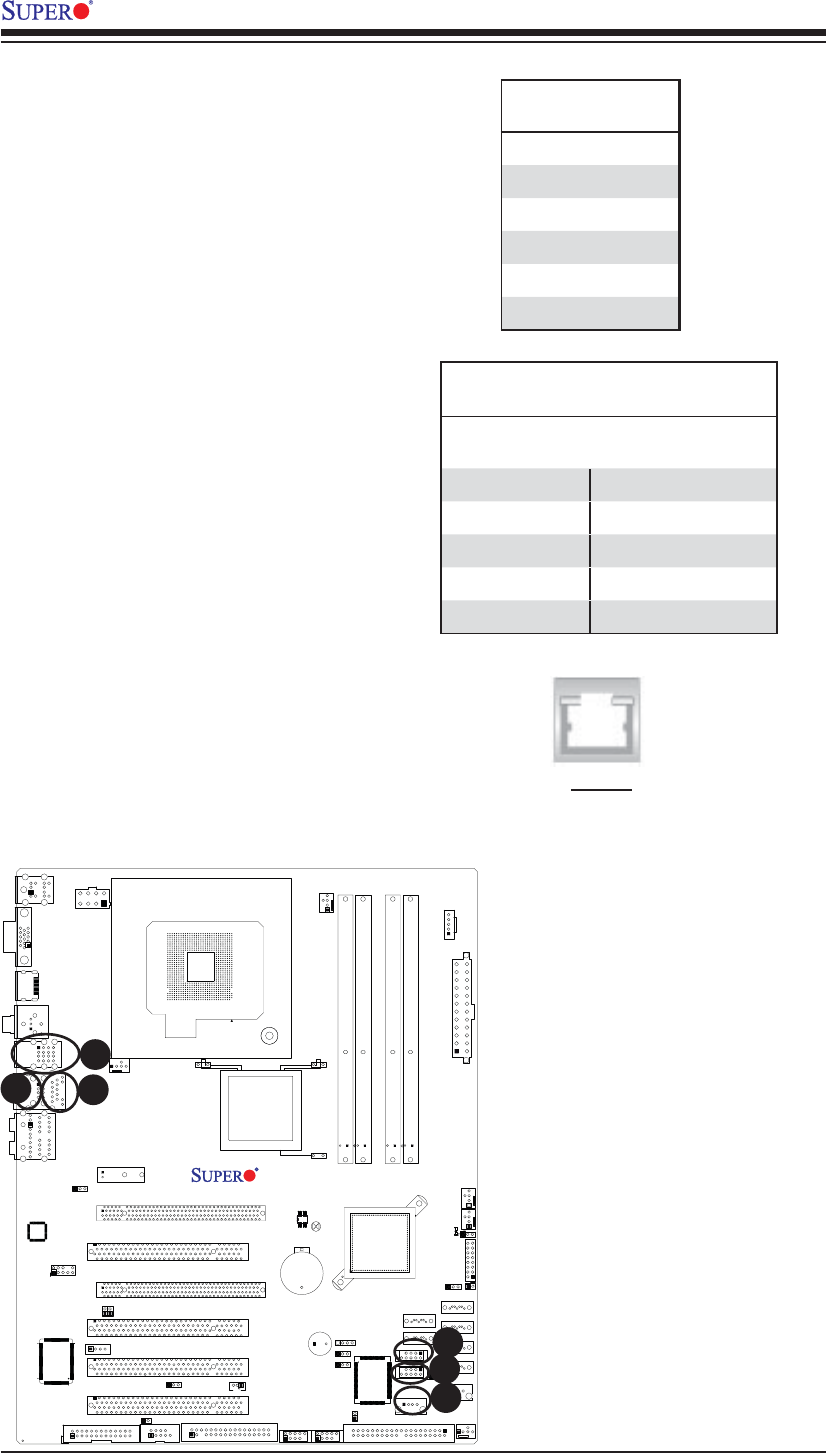

Universal Serial Bus (USB)
There are 12 USB 2.0 (Universal
Serial Bus) ports/headers on the
motherboard. Six of them are Back
Panel USB ports: USB 0~1 (J4) and
USB 2~5 (J7). USB 6, USB 8~9 and
USB10~11 Front Panel USB headers
that can be accessed from the front
side of the chassis. See the tables on
the right for pin defi nitions.
Back Panel USB
(0~5)
Pin# Defi nitions
1 +5V
2 PO-
3 PO+
4 Ground
5 N/A
Front Accessible Panel USB (6, 8~9,
10~11) Connectors
USB 8/10
Pin # Defi nition
USB 6/9/11
Pin # Defi nition
1 +5V 1 +5V
2 PO- 2 PO-
3 PO+ 3 PO+
4 Ground 4 Ground
5 Key 5 No connection
GLAN 1 (Giga-bit Ethernet Port)
A Giga-bit Ethernet port is located
above USB Ports 0~1 on the IO back-
plane. This GLAN port accepts RJ45
type cables.
GLAN1
JL1
JI2C1
JI2C2
JOH1
JPUSB1
JPI1
JWD1
JPL1
JPAC
JLED1
JPD1
COM1
JPW1
Floopy
JPW2
JWOL1
SMBUS_PS1
DIMM1
DIMM2
CD1
JBT1
SPKR1
LE1
JD1
Fan5
Fan4
Fan1
Fan3
Fan2
LAN1
JPUSB2
DIMM2B
DIMM4
DIMM3
USB 10/11
USB 8/9
USB6
1394_2
Slot7 PCI-E x1
Slot6 PCI-E Gen2 x16
Slot3 PCI 33MHz
HD AUDIO
JWOR
CPU
CPU Fan
FP Audio
1394_1
CMOS CLEAR
C2SEA/C2SEE
IDE
VGA
HDMI
USB/0/1
I-SATA3
I-SATA2
I-SATA1
I-SATA0
Slot1 PCI 33MHz
Slot5 PCI 33MHZ
Slot4 PCI-E x4 on x16
KB/MOUSE
SPI BIOS
Slot2 PCI 33MHz
DIMM2A
DIMM1B
DIMM1A
USB7
JF1
USB2/3/4/5
SPDIF_Out
Printer
I-SATA4
I-SATA5
Battery
Intel
G45 (C2SEA)
G43 (C2SEE)
ICH10
Intel
Lan
CTRL
S I/O
IDE
CTRL
F
B
E
D
A
C
A. Back panel USB
Ports 0~1
B. Back panel USB
Ports 2~5
C. FP USB 6
D. FP USB 8~9
E. FP USB 10~11
F. GLAN1
