C2SEA/C2SEE User's Manual
JL1
JI2C1
JI2C2
JOH1
JPUSB1
JPI1
JWD1
JPL1
JPAC
JLED1
JPD1
COM1
JPW1
Floopy
JPW2
JWOL1
SMBUS_PS1
DIMM1
DIMM2
CD1
JBT1
SPKR1
LE1
JD1
Fan5
Fan4
Fan1
Fan3
Fan2
LAN1
JPUSB2
DIMM2B
DIMM4
DIMM3
USB 10/11
USB 8/9
USB6
1394_2
Slot7 PCI-E x1
Slot6 PCI-E Gen2 x16
Slot3 PCI 33MHz
HD AUDIO
JWOR
CPU
CPU Fan
FP Audio
1394_1
CMOS CLEAR
C2SEA/C2SEE
IDE
VGA
HDMI
USB/0/1
I-SATA3
I-SATA2
I-SATA1
I-SATA0
Slot1 PCI 33MHz
Slot5 PCI 33MHZ
Slot4 PCI-E x4 on x16
KB/MOUSE
SPI BIOS
Slot2 PCI 33MHz
DIMM2A
DIMM1B
DIMM1A
USB7
JF1
USB2/3/4/5
SPDIF_Out
Printer
I-SATA4
I-SATA5
Battery
Intel
G45 (C2SEA)
G43 (C2SEE)
ICH10
Intel
Lan
CTRL
S I/O
IDE
CTRL

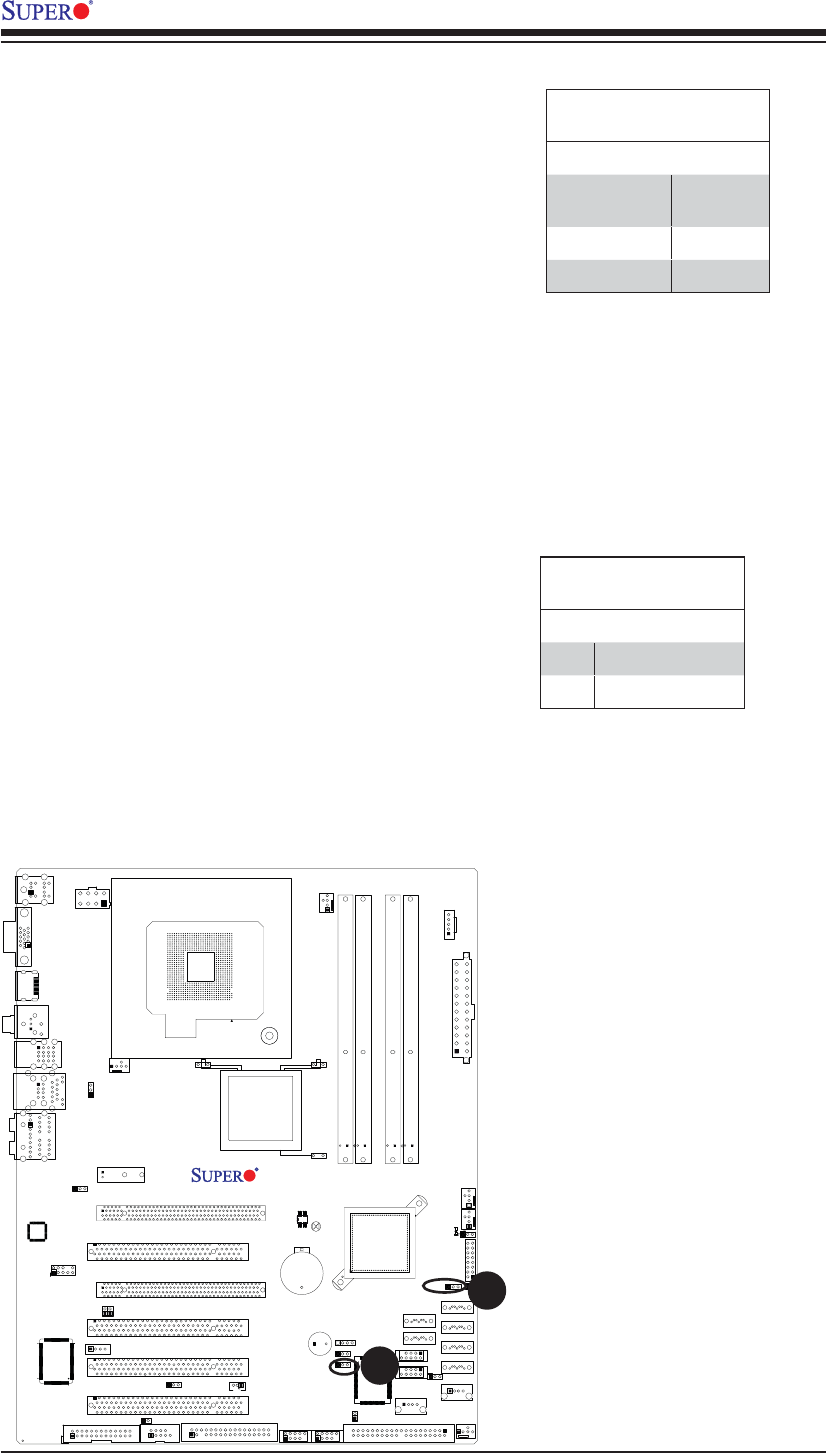

A. Watch Dog Enable
B. 1394_1/1394_2 Enable
Watch Dog Enable/Disable
Watch Dog is a system monitor that can re-
boot the system when a software application
hangs. Close pins 1-2 to reset the system if an
application hangs. Close pins 2-3 to generate
a non-maskable interrupt signal for the appli-
cation that hangs. See the table on the right
for jumper settings. Watch Dog must also be
enabled in the BIOS. (Note: When enabled,
the user needs to write his/her own applica-
tion software to disable the WD Timer.)
Watch Dog
Jumper Settings (JWD)
Jumper Setting Defi nition
Pins 1-2 Reset
(default)
Pins 2-3 NMI
Open Disabled
A
IEEE 1394a Enable
JP11 allows the user to use the onboard IEEE
1394_1 and 1394_2 connections. Close Pins
1 and 2 of this jumper to use this feature. See
the table on the right for jumper settings. The
default setting is Enabled.
1394a Enable
Jumper Settings
Pin# Defi nition
1-2 Enabled (default)
2-3 Disabled
B
