X8DA3/X8DAi User's Manual
X8DA3/i
Power LED

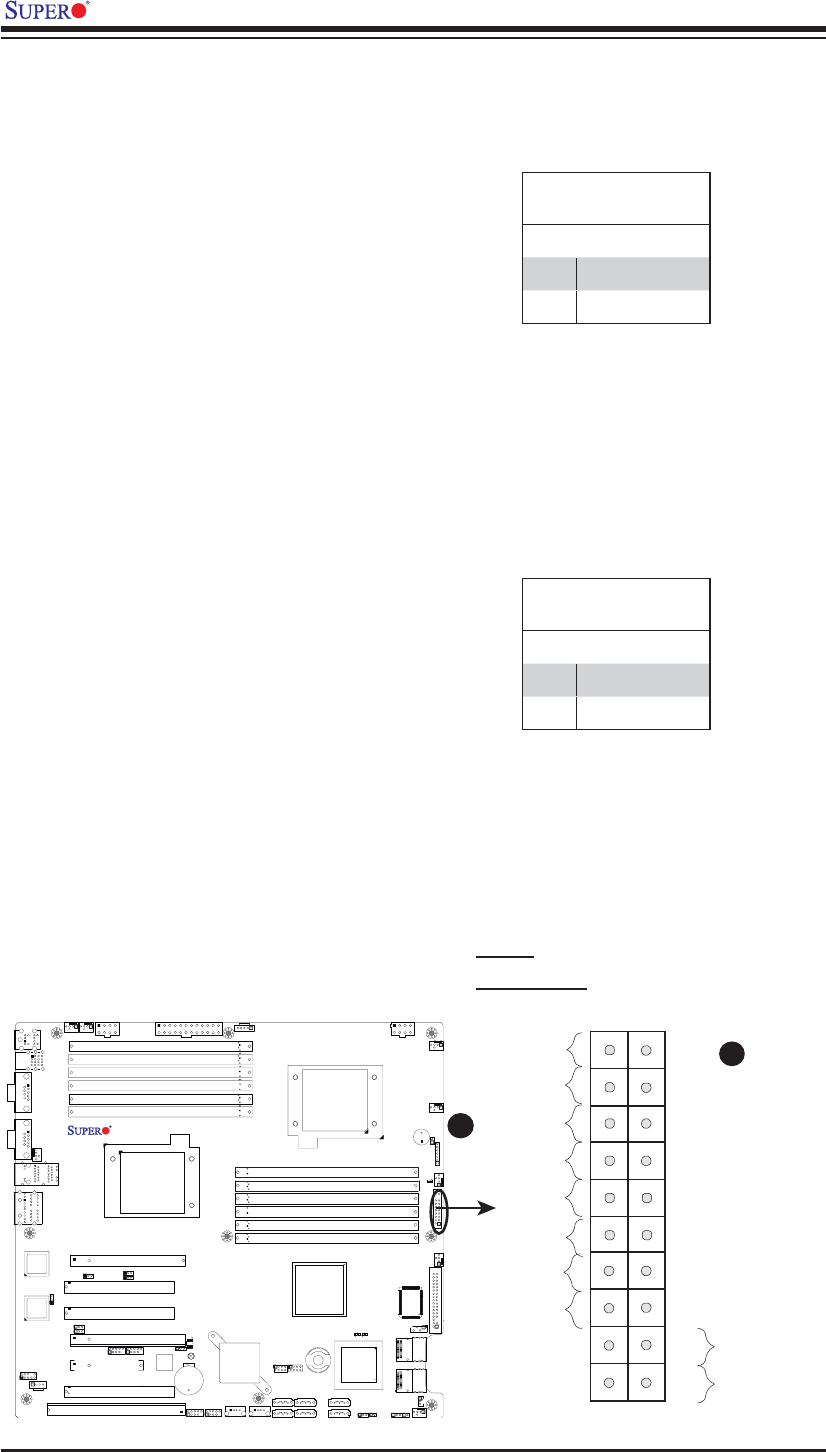

The Power LED connection is located
on pins 15 and 16 of JF1. Refer to the
table on the right for pin de nitions.
NMI Button
The non-maskable interrupt button
header is located on pins 19 and 20
of JF1. Refer to the table on the right
for pin de nitions.
Power Button
OH/Fan Fail LED
1
NIC1 LED
Reset Button
2
HDD LED
Power LED
Reset
PWR
Vcc
Vcc
Vcc
Vcc
Ground
Ground
1920
Vcc
X
Ground
NMI
X
Vcc
PWR Fail LED
NIC2 LED
NMI Button
Pin De nitions (JF1)
Pin# De nition
19 Control
20 Ground
Power LED
Pin De nitions (JF1)
Pin# De nition
15 +5V
16 Ground
3. Front Control Panel Pin De nitions
A. NMI
B. PWR LED
A
B
