X8DA3/X8DAi User's Manual
JWOL1
JC2
JSM1
JSM2
JUSB2
JUSB3
J5
JPS1
JPI1
JI2C2
JI2C1
JPL2
1
JI2C3
JI2C4
JPL1
JF1
LE1
LES1
LES2
J6
JD1
SP1
JL1
JPS2
KB/Mouse
JPW3
JPW1
JPW2
Fan8/CPU2 Fan
Fan6
Fan5
Fan2
Fan4
Fan3
Fan7/CPU1
Fan1
Slot5 PCI 33MH
Slot4 PCI 33MH
Slot3 PCI-E X16
P1 DIMM3A
USB
0/1
COM1
LAN1
AUDIO
CPU1
JBT1
Slot2 PCI-E X4
I-SATA0
I-SATA1
I-SATA4
I-SATA5
JWD1
Slot1 PCI 33MH
T-SGPIO2
Slot0 SIMLC
Floppy
1394_1
1394_2
USB6/7
USB4/5
USB8
USB9
USB
2/3
COM2
LAN
CTRL
LAN
CTRL
CD1
Slot6 PCI-E x16
SPI BIOS
I-Button
I-SATA3
I-SATA2
JOH1
X8DA3/i
Battery
SAS 0~3
SAS 4~7
CPU2
82573V
82573L
ICH10R
Intel
South
Bridge
SAS CTRL
1068E
LAN2
Intel IOH-36D
P1 DIMM3B
P1 DIMM2A
P1 DIMM2B
P1 DIMM1A
P1 DIMM1B
P2 DIMM3A
P2 DIMM3B
P2 DIMM2A
P2 DIMM2B
P2 DIMM1A
P2 DIMM1B
(North Bridge)
S I/O
T-SGPIO1
1394
CTRL
JFDD1

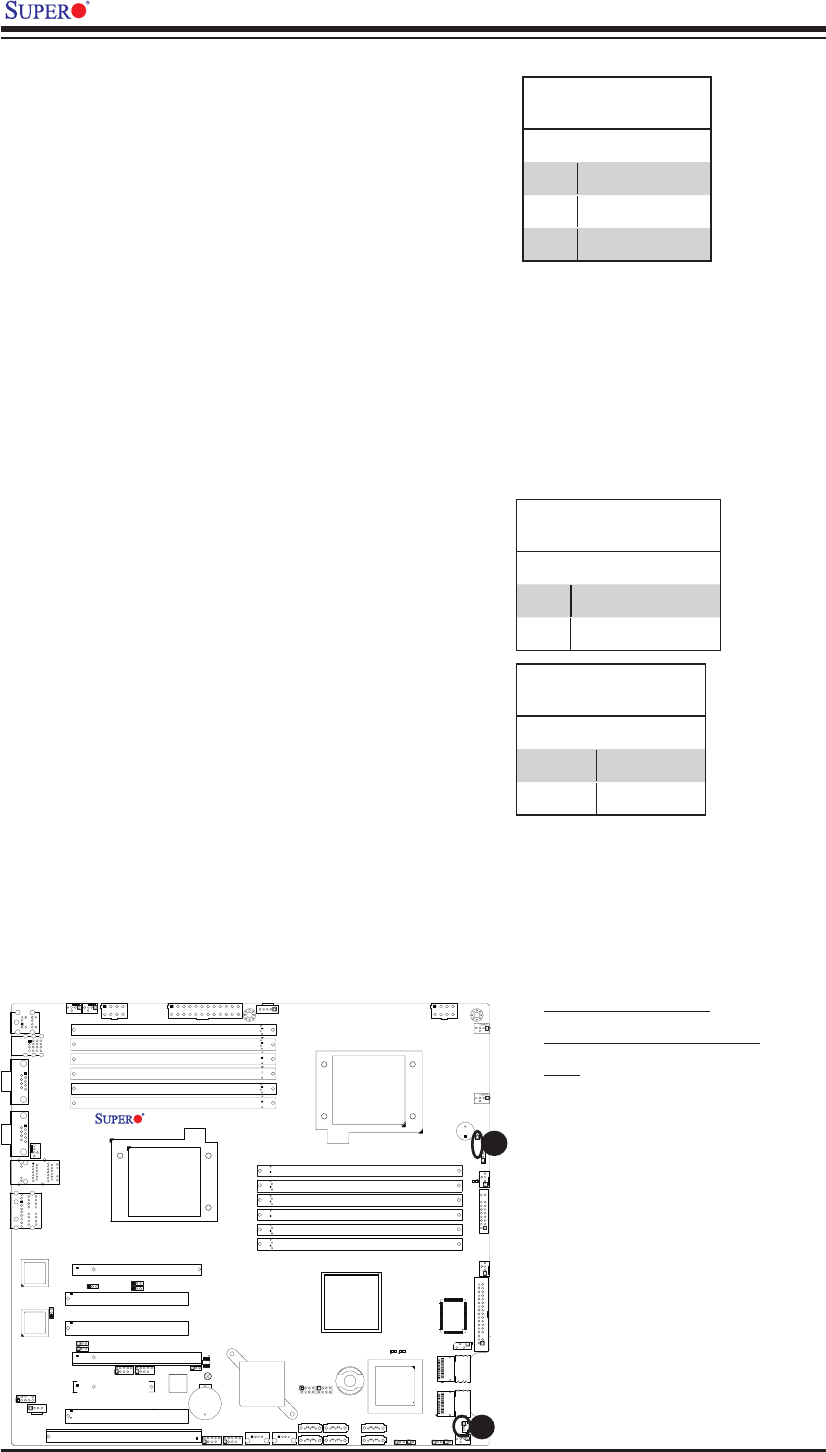

Wake-On-LAN
The Wake-On-LAN header is located
at JWOL1 on the motherboard. You
must also have a LAN card with a
Wake-On-LAN connector and a cable
to use this feature. See the table on
the right for pin de nitions.
Wake-On-LAN
Pin De nitions
Pin# De nition
1 +5V Standby
2 Ground
3 Wake-up
A
B
A. Keyboard/Mouse
B. Overheat/Fan Fail
LED
Overheat LED/Fan Fail (JOH1)
The JOH1 header is used to connect
an LED indicator to provide warnings
of chassis overheating or fan failure.
This LED will blink when a fan failure
occurs. Refer to the table on right for
pin de nitions.
Overheat LED
Pin De nitions
Pin# De nition
1 5vDC
2 OH Active
OH/Fan Fail LED
Pin De nitions
State Message
Solid Overheat
Blinking Fan Fail
