2-16
X8DA3/X8DAi User's Manual
JWOL1
JC2
JSM1
JSM2
JUSB2
JUSB3
J5
JPS1
JPI1
JI2C2
JI2C1
JPL2
1
JI2C3
JI2C4
JPL1
JF1
LE1
LES1
LES2
J6
JD1
SP1
JL1
JPS2
KB/Mouse
JPW3
JPW1
JPW2
Fan8/CPU2 Fan
Fan6
Fan5
Fan2
Fan4
Fan3
Fan7/CPU1
Fan1
Slot5 PCI 33MH
Slot4 PCI 33MH
Slot3 PCI-E X16
P1 DIMM3A
USB
0/1
COM1
LAN1
AUDIO
CPU1
JBT1
Slot2 PCI-E X4
I-SATA0
I-SATA1
I-SATA4
I-SATA5
JWD1
Slot1 PCI 33MH
T-SGPIO2
Slot0 SIMLC
Floppy
1394_1
1394_2
USB6/7
USB4/5
USB8
USB9
USB
2/3
COM2
LAN
CTRL
LAN
CTRL
CD1
Slot6 PCI-E x16
SPI BIOS
I-Button
I-SATA3
I-SATA2
JOH1
X8DA3/i
Battery
SAS 0~3
SAS 4~7
CPU2
82573V
82573L
ICH10R
Intel
South
Bridge
SAS CTRL
1068E
LAN2
Intel IOH-36D
P1 DIMM3B
P1 DIMM2A
P1 DIMM2B
P1 DIMM1A
P1 DIMM1B
P2 DIMM3A
P2 DIMM3B
P2 DIMM2A
P2 DIMM2B
P2 DIMM1A
P2 DIMM1B
(North Bridge)
S I/O
T-SGPIO1
1394
CTRL
JFDD1

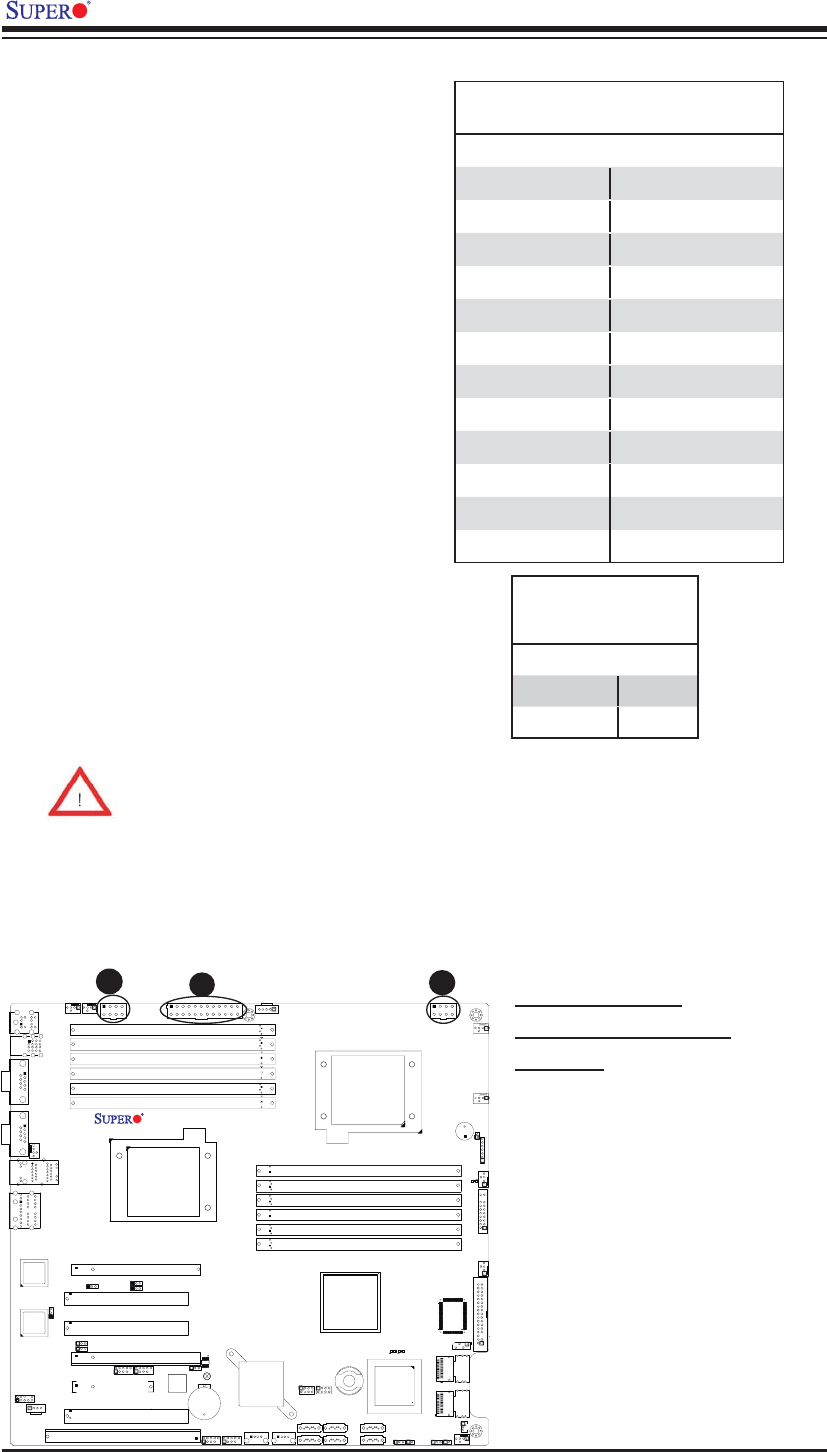

2-6 Connecting Cables
ATX Power Connector
There are a 24-pin main power
supply connector(JPW3) and two
8-pin CPU PWR connectors (JPW1/
JPW2) on the motherboard. These
power connectors meet the SSI EPS
12V specifi cation. For the 8-pin PWR
(JPW1/JPW2), please refer to the item
listed below.
Processor Power Connector
In addition to the Primary ATX power
connector, the 12V 8-pin CPU PWR
connectors at JPW1/JPW2 must also
be connected to your power supply.
See the table on the right for pin
defi nitions.
ATX Power 24-pin Connector
Pin Defi nitions
Pin# Defi nition Pin # Defi nition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 COM 3 COM
16 PS_ON 4 +5V
17 COM 5 COM
18 COM 6 +5V
19 COM 7 COM
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 COM 12 +3.3V
12V 8-pin Power Con-
nector
Pin Defi nitions
Pins Defi nition
1 through 4 Ground
5 through 8 +12V
A. 24-pin ATX PWR
B/C.8-pin Processor PWR
(Required)
A
B
C
Warning: To prevent damage to your power supply or mother-
board, please use a power supply that contains a 24-pin and
two 8-pin power connectors. Be sure to connect these power
connectors to the 24-pin and the two 8-pin power connectors on
your motherboard for adequate power supply to your system.
Failure to do so will void the manufacturer warranty on your
power supply and motherboard.
