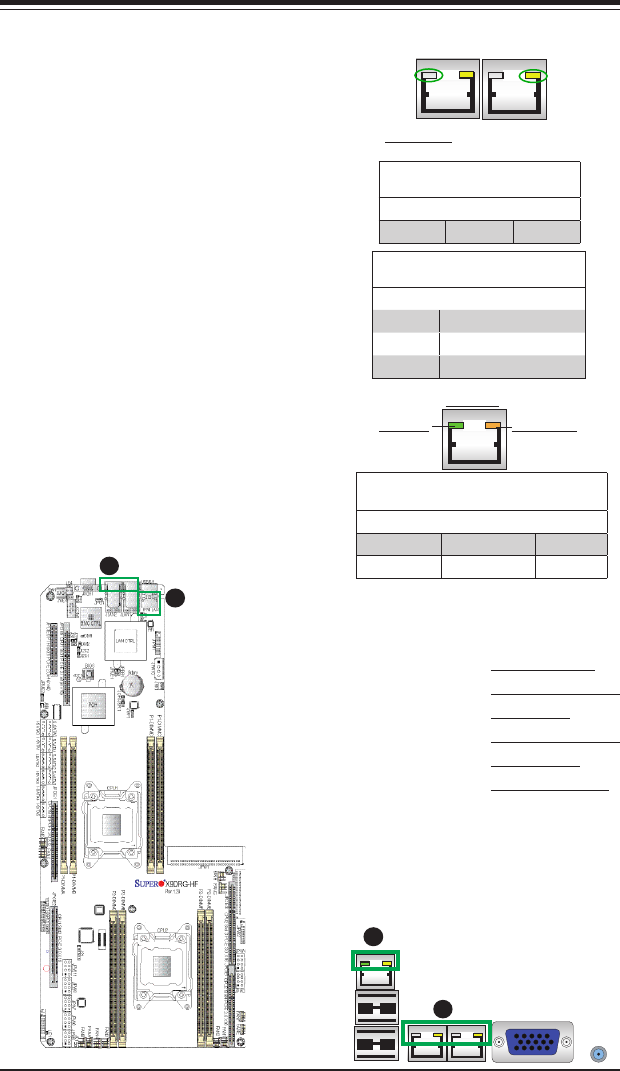

2-8 Onboard LED Indicators
A. LAN1/2 LEDs
(GLAN1/GLAN2:
X9DRG-HF,
TLAN1/TLAN2:
X9DRG-HTF),
B. IPMI LAN LEDs
IPMI Dedicated LAN LEDs
In addition to LAN 1/LAN 2, an IPMI
Dedicated LAN is also located on the I/O
Backplane of the motherboard. The amber
LED on the right indicates activity, while the
green LED on the left indicates the speed of
the connection. See the table on the right
for more information.
LAN 1/LAN 2
IPMI LAN
(X8ST3-F)
Link LED Activity LED
IPMI LAN
IPMI LAN Link LED (Left) &
Activity LED (Right)
Color/State Denition
Link (Left) Green: Solid 100 Mbps
Activity (Right) Amber: Blinking Active
GLAN LEDs
There are two LAN ports on the moth-
erboard. Each Ethernet LAN port has
two LEDs. The Yellow LED on the right
indicates activity. The LED on the left is
the Link LED, which can be green, amber
or off to indicate the speed of the connec-
tion. See the tables on the right for more
information.
Activity LED
GLAN Link Indicator
LED Settings
LED Color Denition
Off No Connection or 10 Mbps
Green 100 Mbps
Amber 1 Gbps
Link LED
GLAN Activity Indicator (Left)
LED Settings
Color Status Denition
Yellow Flashing Active
Rear View (when facing the
rear side of the chassis)
