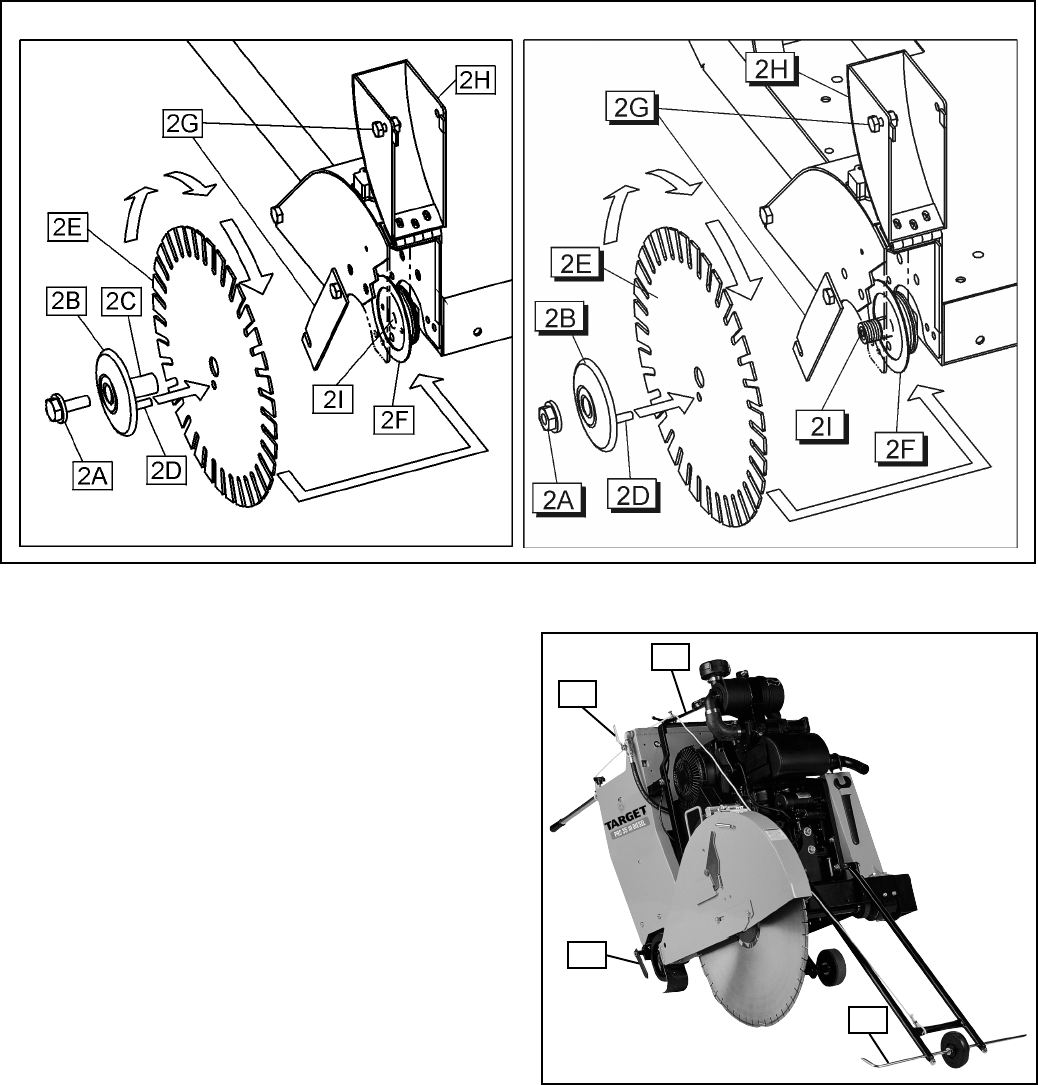

2A. BLADE SHAFT BOLT OR NUT: Use to tighten
the outer flange against the diamond blade.
2B. OUTER FLANGE: Use to hold the diamond
blade in position.
2C. OUTER FLANGE ARBOR: Use to support the
diamond blade.
2D. LOCKING PIN: Use to prevent the diamond
blade from rotating on the shaft during operation.
2E. DIAMOND BLADE: Use as the cutting tool for
concrete and asphalt surfaces.
2F. INNER FLANGE: Inside support used to hold
the diamond blade in position.
2G. BLADE GUARD NOSE LATCH: Use to latch
the front of the blade guard in the down position.
2H. BLADE GUARD FRONT: The front section of
the blade guard.
2I. BLADE SHAFT: Supports the blade flanges and
blade.
3A. WATER VALVE: Use to control the water supply
to the diamond blade.
3B. LIFTING BAIL: The saw can be lifted from this
point.
3C. FRONT GUIDE: Use to locate the path of the
diamond blade on the cutting line.
3D. REAR GUIDE: Use to locate the path of the
diamond blade on the cutting line.
FIG. 3
3C
3B
3A
3D
FIG. 2
