AOC-USAS-L8i Add-on Card User’s Manual
5-4
6. Select one of the Setup options. The options are fully explained in the screen text.
• Select COMPLETE if you are installing MegaRAID Storage Manager software on
a server.
• Select C
LIENT if you are installing MegaRAID Storage Manager software on a
PC that is used to view and configure servers over a network.
• Select S
ERVER to install only those components required for remote server man-
agement.
• Select S
TANDALONE if you are using MegaRAID Storage Manager software to
create and manage storage configurations on a standalone workstation.
Click N
EXT to proceed.
7. On the next screen, click INSTALL to install the program.
8. Click FINISH when the final CONFIGURATION WIZARD screen appears.
If you select CLIENT installation for a PC used to monitor servers, and if there are no
available servers with a registered framework on the local subnet (that is, servers with a
complete installation of MegaRAID Storage Manager software), you cannot connect to a
remote server unless you first edit the startupui.bat file. Specifically, you must add the IP
address of the remote server to the end of the startupui.bat file.

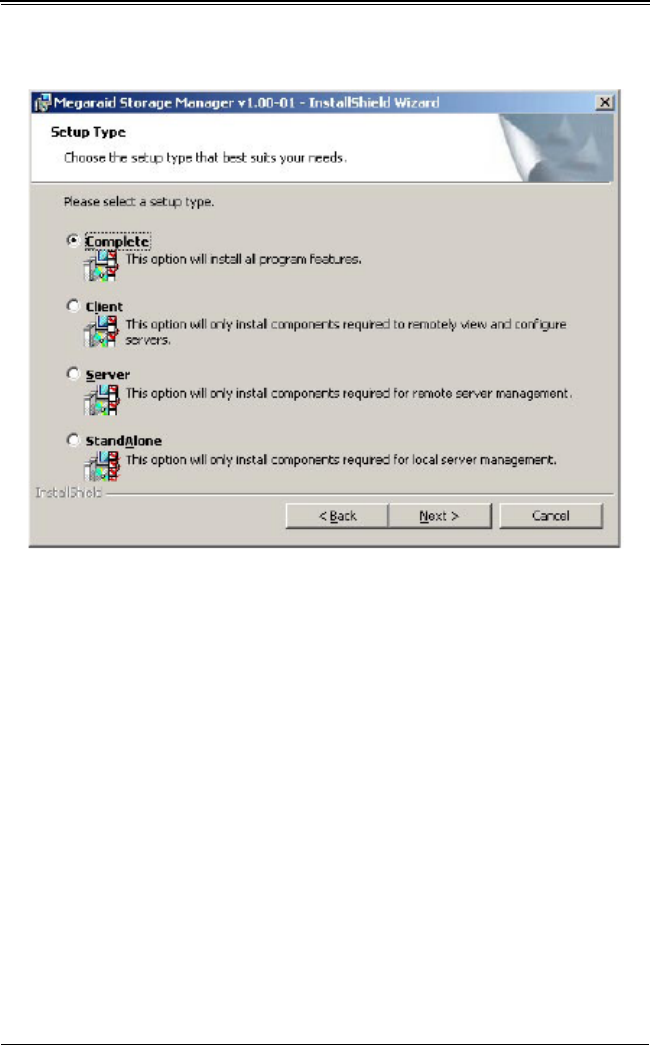

Figure 5-2. Setup Type Screen
