3-4

AOC-LPZCR1/AOC-SOZCR1 Manual

To Create Arrays

(*Note: Make sure that the disks you want to use for the arrays are connected

to your system and are initialized. A disk shown in the gray area is not initialized

and cannot be used for an array. Please refer to the section "Initializing Disk

Drives" for disk initialization.)

1. Turn on your computer. When prompted, press <Ctrl> and <A> to access the

Adaptec RAID Utility.

2. From the RAID Conﬁ guration menu (Figure 3.1), select "Array Conﬁ guration

Utility" and press <Enter>. The Array Conﬁ guration Utility Main Menu (Figure

3.2) will display.

3. Select "Create Array" and hit <Enter> as shown above. The Create Array

submenu will display as shown on the next page:

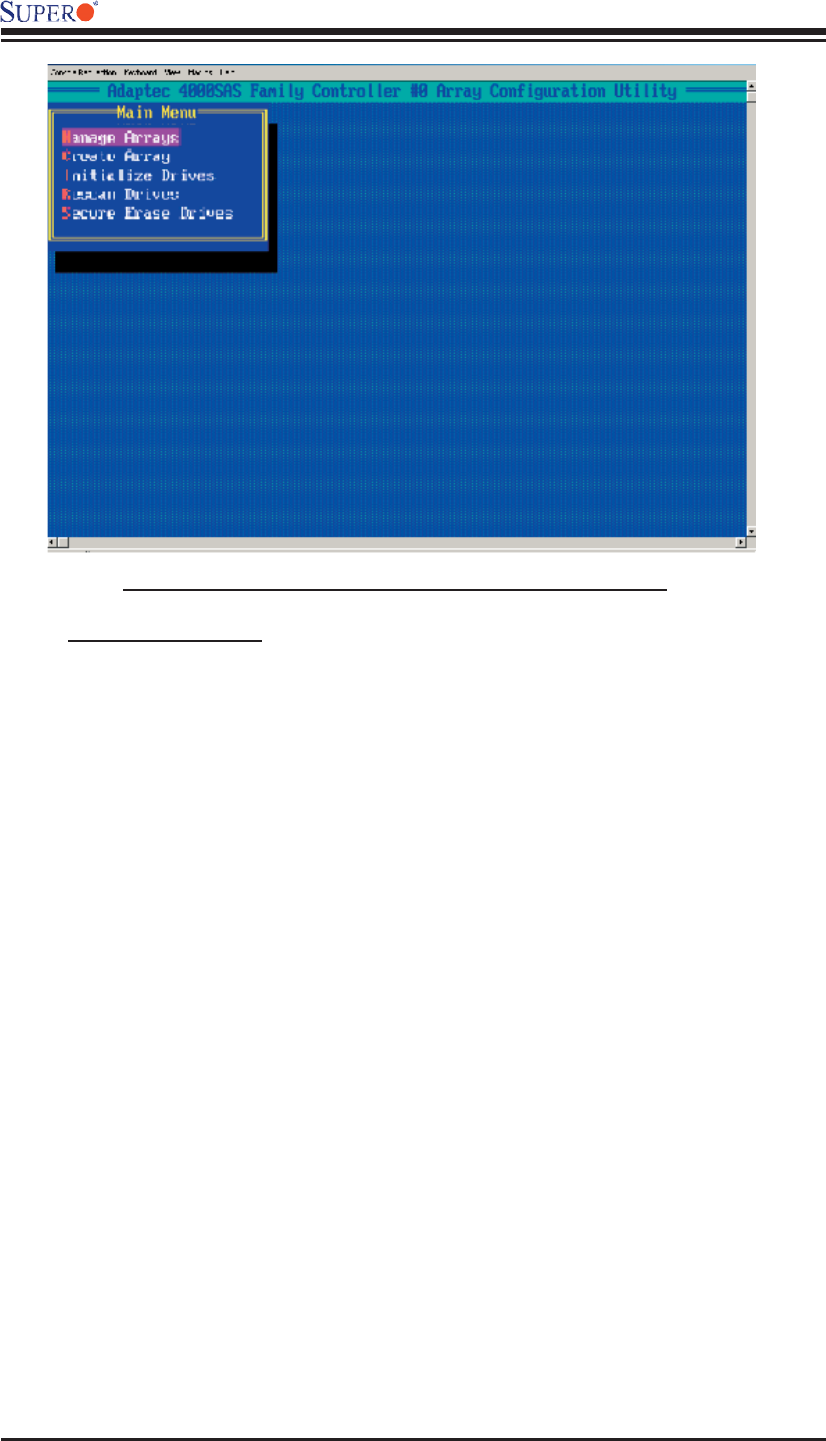

Figure 3.2 The Array Conﬁ guration Utility Main Menu
