2-6
X6DAT-G/X6DAi-G User's Manual

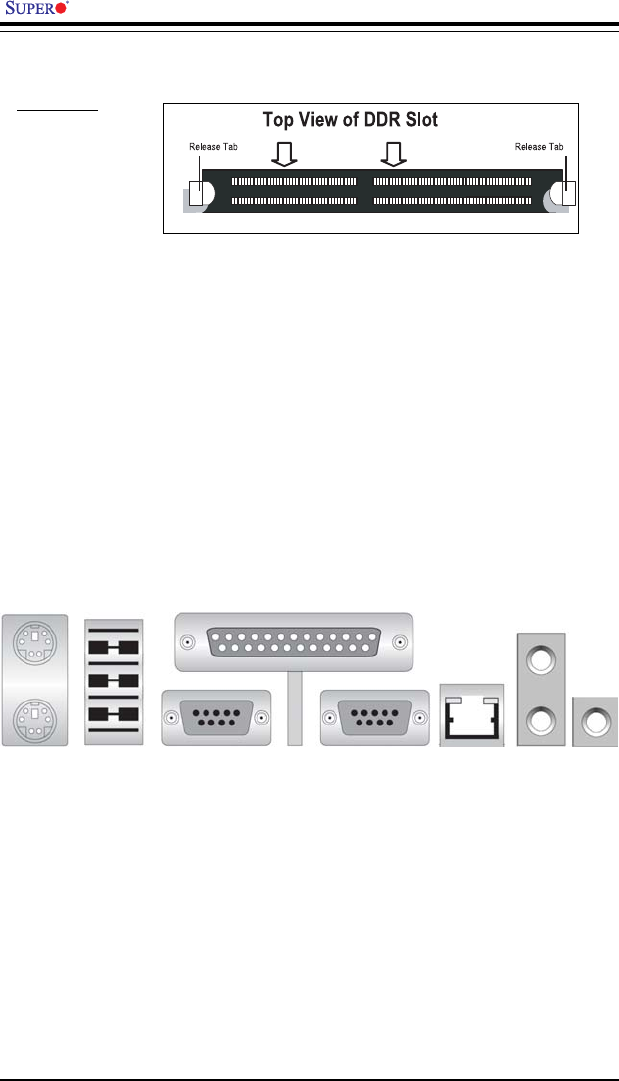

To Remove:
Use your thumbs
to gently push
near the edge of
both ends of the
module. This
should release it
from the slot.
2-4 I/O Ports/Control Panel Connectors
The I/O ports are color coded in conformance with the PC 99 specification.
See Figure 2-3 below for the colors and locations of the various I/O ports.
Figure 2-3. I/O Port Locations and Definitions
Parallel Port
KB/Mouse
USB0-3
LAN Line-In MIC
Mic
COM1 COM2
Line-out
(Green)
(Purple)
(Blue) (Pink)
(Green)
(Green)
(Green)
(Purple)
