X7SLM-L User's Manual
A
1
USB2/3
COM2
USB7
USB5/6
USB4
JBT1
Slot 4 PCI 33MHz
Slot 5 PCI-E x4 in x8
Speaker
Slot 6 PCI 33MHz
IDE
I-SATA0
I-SATA1
Slot 7 PCI-E x16
I-SATA3
I-SATA2
LAN2
LAN1
VGA
COM1
UNB NON-ECC DDR2 400/533/667 Required
DIMM1A
DIMM1B
USB0/1
/CPU Fan
JPW1
JPW2
KB/MOUSE
Intel 945GC
Intel ICH7R
Battery
BIOS
Super IO
LAN
CTRL
LAN
CTRL
VRM
CTRL
Intel
CPU
LE1
JF1
FP CTRL
JD1
Fan1
PWR LED/SPKR
JOH1
Fan2
JWD
Fan3
JL1
Fan4
JPL1
JPL2
Fan5
JP3
Clock chip
X7SLM-L
I/O Port Locations and Defi nitions
2-5 Connectors/I/O Ports

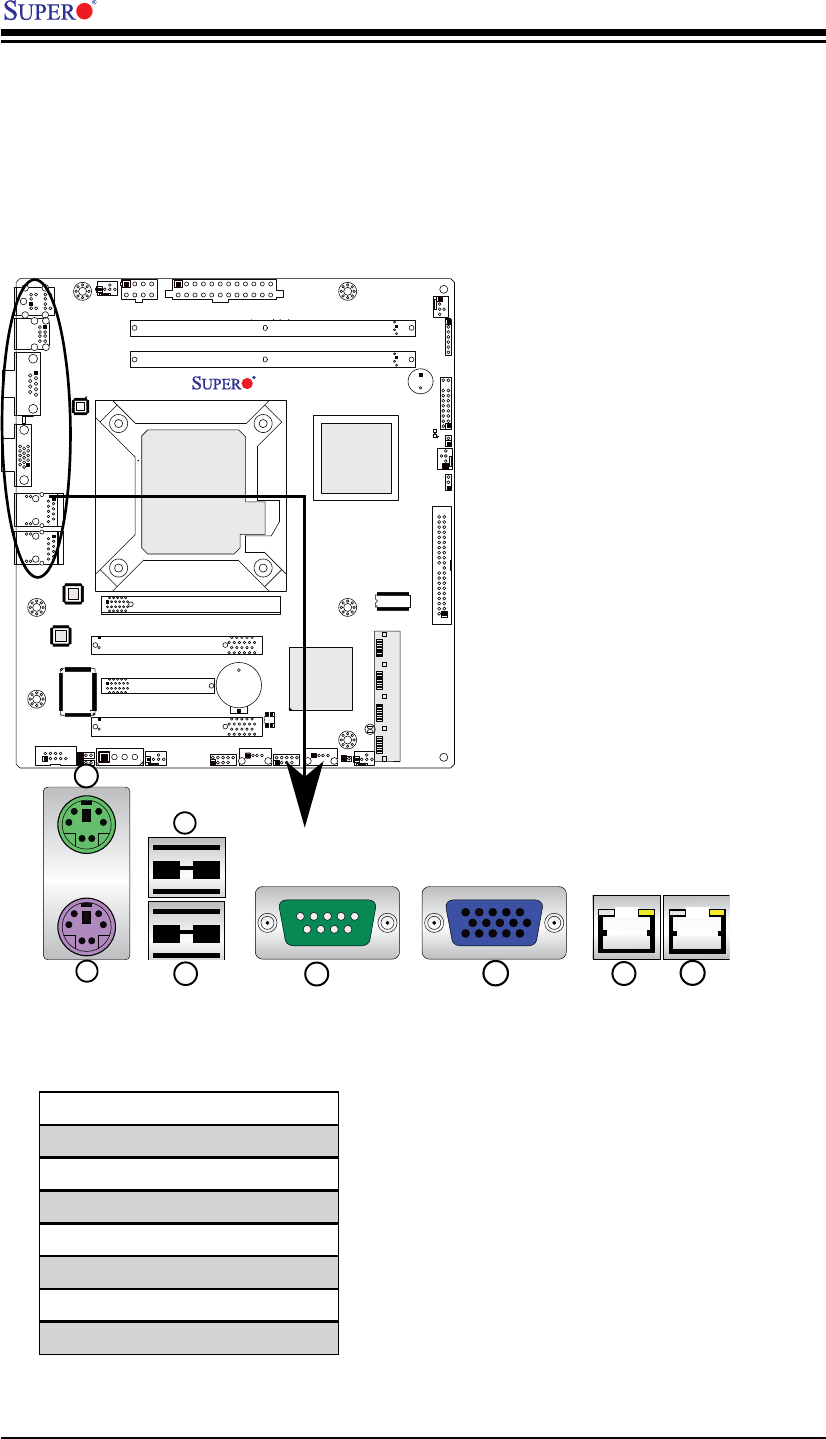

The I/O ports are color coded in conformance with the PC 99 specifi cation. See the
gure below for the colors and locations of the various I/O ports.
Back Panel Connectors and I/O Ports
2
4
7
1
3
5
6
8
Back Panel Connectors
1. Keyboard (Purple)
2. PS/2 Mouse (Green)
3. USB Port 0
4. USB Port 1
5. COM 1 (Green)
6. VGA (Blue)
7. LAN1
8. LAN 2
