Chapter 2: Installation
2-25
A
1
USB2/3
COM2
USB7
USB5/6
USB4
JBT1
Slot 4 PCI 33MHz
Slot 5 PCI-E x4 in x8
Speaker
Slot 6 PCI 33MHz
IDE
I-SATA0
I-SATA1
Slot 7 PCI-E x16
I-SATA3
I-SATA2
LAN2
LAN1
VGA
COM1
UNB NON-ECC DDR2 400/533/667 Required
DIMM1A
DIMM1B
USB0/1
/CPU Fan
JPW1
JPW2
KB/MOUSE
Intel 945GC
Intel ICH7R
Battery
BIOS
Super IO
LAN
CTRL
LAN
CTRL
VRM
CTRL
Intel
CPU
LE1
JF1
FP CTRL
JD1
Fan1
PWR LED/SPKR
JOH1
Fan2
JWD
Fan3
JL1
Fan4
JPL1
JPL2
Fan5
JP3
Clock chip
X7SLM-L
Fan Header
Pin Defi nitions
Pin# Defi nition
1 Ground (Black)
2 2.5A/+16V
(Red)
3 Tachometer
4 PWM_Control
Fan Headers

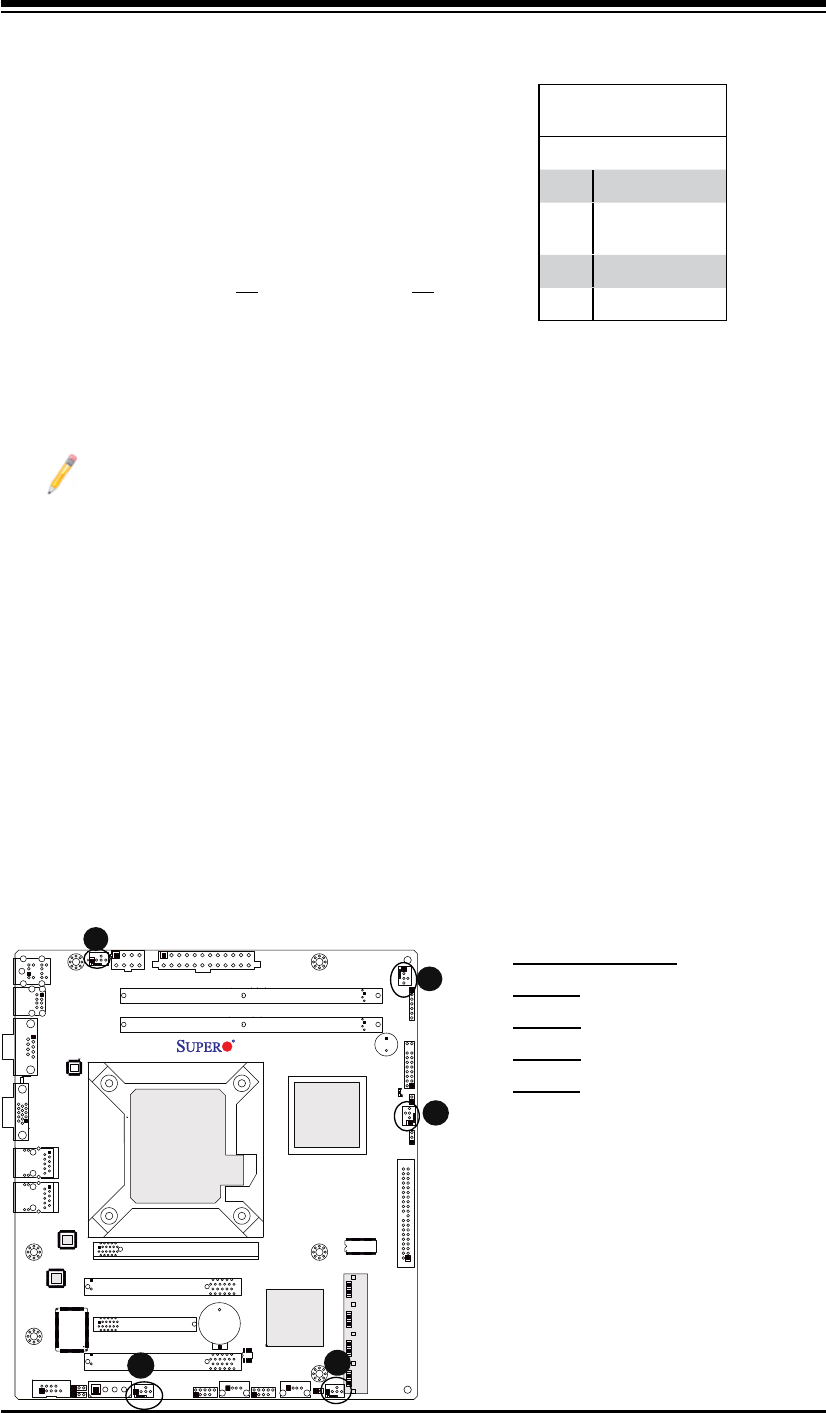

The X7SLM-L has fi ve fan headers (Fan1
~ Fan5). Fans 2~5 are system cooling
fans. Fan 1 is used as a CPU fan. These
fans are 4-pin fan headers. However,
Pins 1~3 of the fan headers are backward
compatible with the traditional 3-pin fans.
(Note: Please use all 3-pin fans or all
4-pin fans on a motherboard. Please do
not use 3-pin fans and 4-pin fans on the
same board. Refer to the table on the right
for pin defi nitions.
Note: The speeds of 4-pin (PWM)
fans are controlled by Thermal Man-
agement via BIOS Hardware Moni-
toring in the Advanced Setting. (The
default setting is Disabled.)
A
B
A. Fan1 (CPU Fan)
B. Fan2
C. Fan3
D. Fan4
E. Fan5
C
D
E
