2-28
X7SLM-L User's Manual
A
1
USB2/3
COM2
USB7
USB5/6
USB4
JBT1
Slot 4 PCI 33MHz
Slot 5 PCI-E x4 in x8
Speaker
Slot 6 PCI 33MHz
IDE
I-SATA0
I-SATA1
Slot 7 PCI-E x16
I-SATA3
I-SATA2
LAN2
LAN1
VGA
COM1
UNB NON-ECC DDR2 400/533/667 Required
DIMM1A
DIMM1B
USB0/1
/CPU Fan
JPW1
JPW2
KB/MOUSE
Intel 945GC
Intel ICH7R
Battery
BIOS
Super IO
LAN
CTRL
LAN
CTRL
VRM
CTRL
Intel
CPU
LE1
JF1
FP CTRL
JD1
Fan1
PWR LED/SPKR
JOH1
Fan2
JWD
Fan3
JL1
Fan4
JPL1
JPL2
Fan5
JP3
Clock chip
X7SLM-L

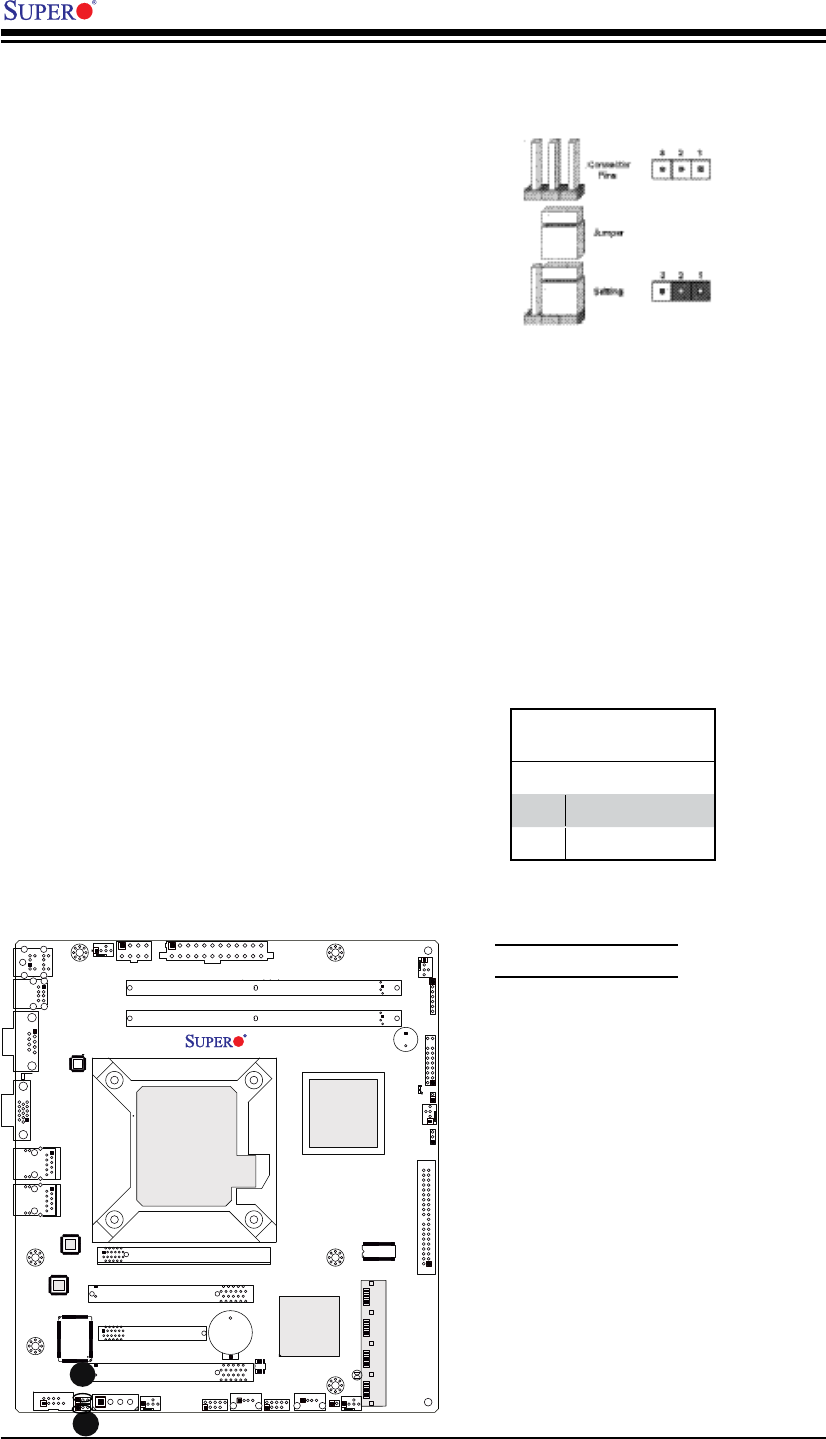

2-7 Jumper Settings
Explanation of Jumpers
To modify the operation of the mother-
board, jumpers can be used to choose
between optional settings. Jumpers cre-
ate shorts between two pins to change
the function of the connector. Pin 1 is
identifi ed with a square solder pad on the
printed circuit board.
Note: On two pin jumpers, "Closed"
means the jumper is on and "Open"
means the jumper is off the pins.
A
A. LAN Port 1 Enable
B. LAN Port 2 Enable
LAN Port Enable/Disable
JPL1/JPL2 enable or disable LAN
Port 1/LAN Port 2 on the mother-
board. See the table on the right for
jumper settings. The default setting
is enabled.
GLAN Enable
Jumper Settings
Pin# Defi nition
1-2 Enabled (default)
2-3 Disabled
B
