X7SLM-L
IDE Drive Connectors
Pin Defi nitions
Pin# Defi nition Pin # Defi nition
1 Reset IDE 2 Ground
3 Host Data 7 4 Host Data 8
5 Host Data 6 6 Host Data 9
7 Host Data 5 8 Host Data 10
9 Host Data 4 10 Host Data 11
11 Host Data 3 12 Host Data 12
13 Host Data 2 14 Host Data 13
15 Host Data 1 16 Host Data 14
17 Host Data 0 18 Host Data 15
19 Ground 20 Key
21 DRQ3 22 Ground
23 I/O Write 24 Ground
25 I/O Read 26 Ground
27 SIORDY 28 (PD)
29 SDDACK# 30 Ground
31 IRQ15 32 (NC)
33 Addr1 34 SHDD66DET
35 Addr0 36 Addr2
37 SDCS1# 38 SDCS3#
39 SHDDLED# 40 Ground
41 +5V 42 +5V
43 Ground 44 (NC)
A
A. IDE

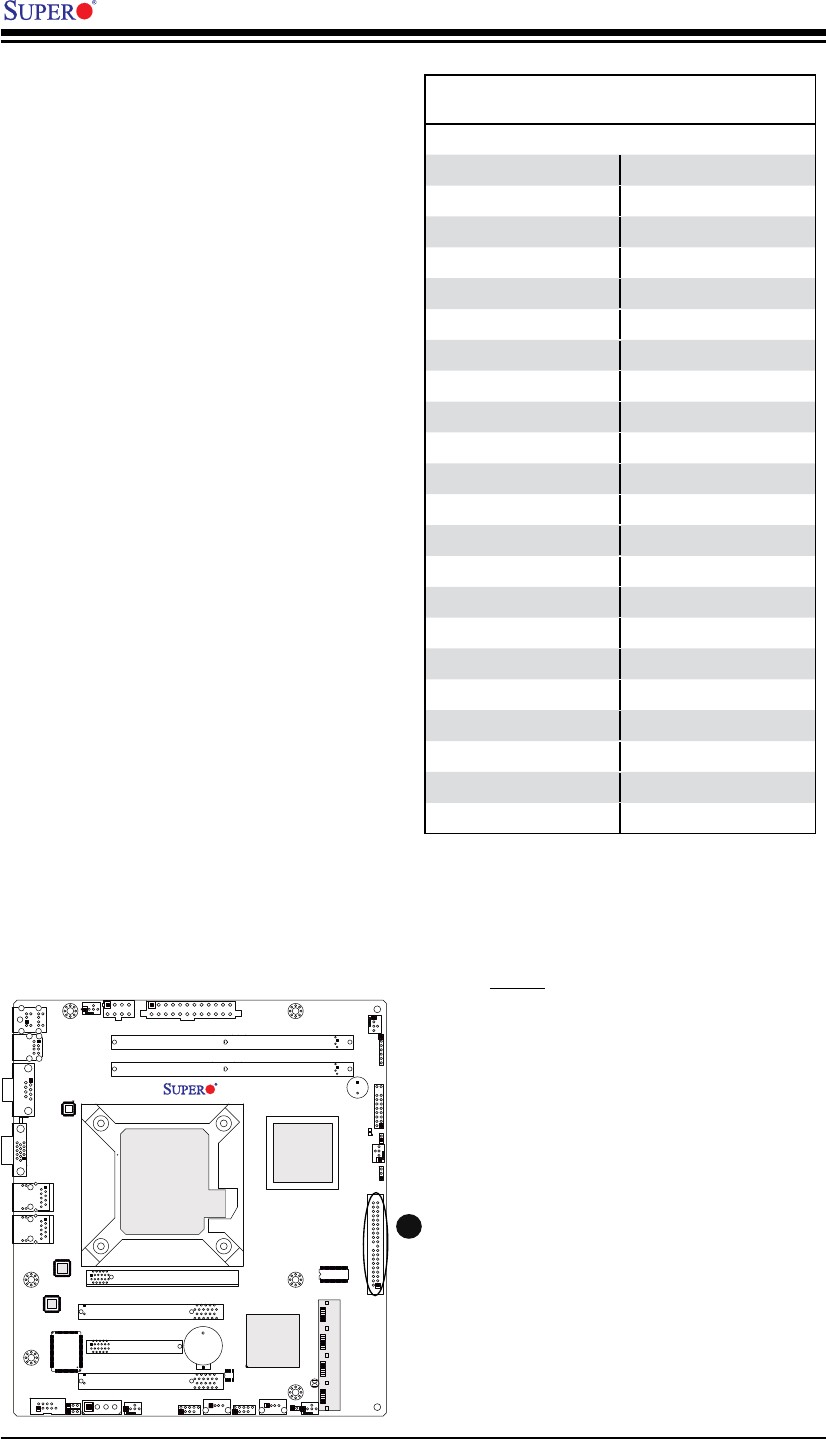

IDE Connector
An IDE Connector is located close to
SATA Ports 0~3 on the motherboard.
This 44-pin connector provides support
for 2.5" hard drive disks. See the table
on the right for pin defi nitions.
