Control panel

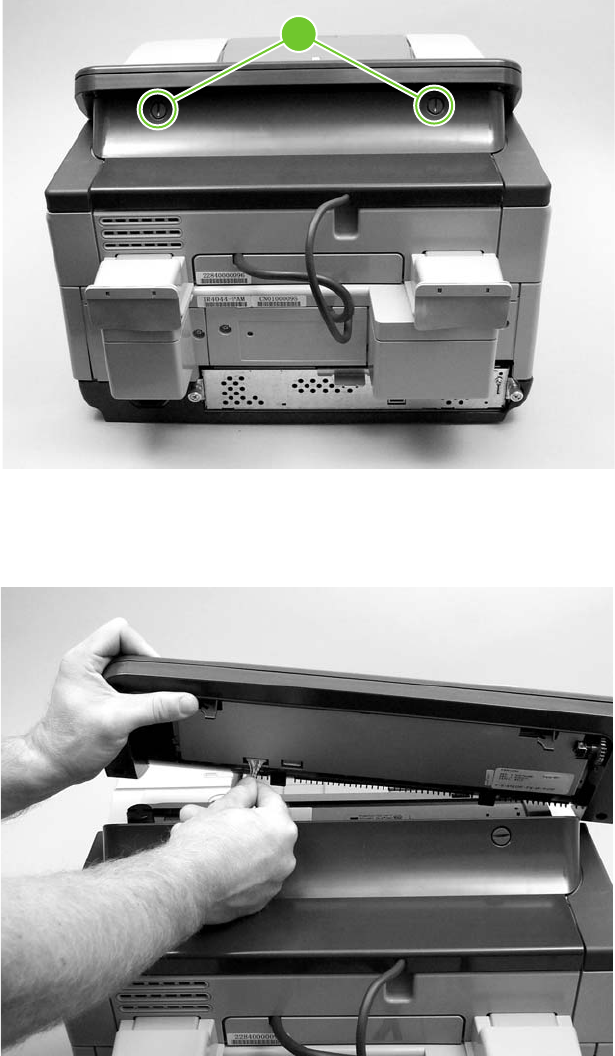

1. Turn the two latches (callout 1) counterclockwise 90° until they click.
1
Figure 5-15 Removing the control panel (1 of 2)
2. Rotate the top of the control panel away from the device and disconnect one connector to free the
control panel from the device.
Figure 5-16 Removing the control panel (2 of 2)
3. Remove the control panel.
ENWW User-replaceable parts 47
