Chapter 3 PXI-8170 Series Installation
© National Instruments Corporation 3-3 PXI-8170 Series User Manual
Figures 3-1 and 3-2 show the location and factory-default settings of the
configuration switches and jumpers on the PXI-8170 Series.

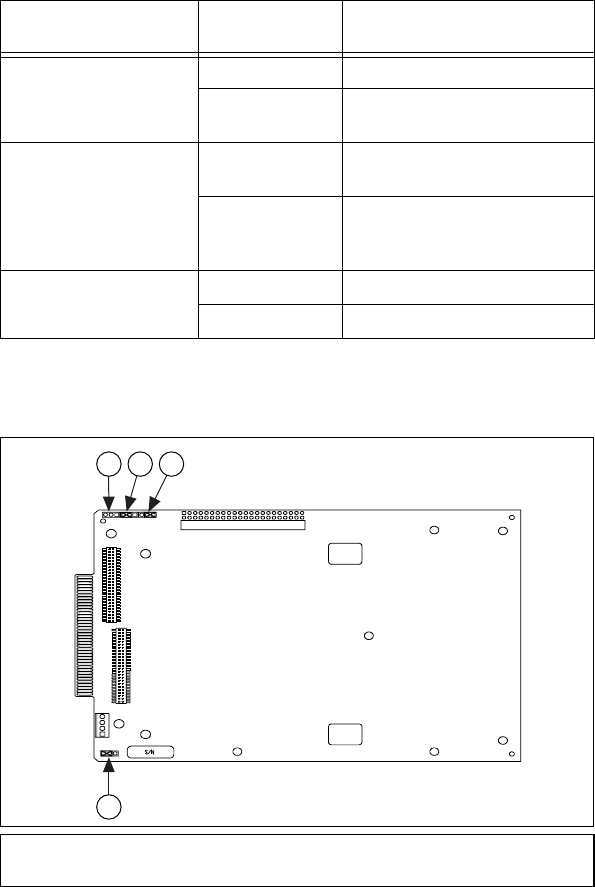

Figure 3-1. PXI-8170 Series I/O Board Parts Locator Diagram
Table 3-3. Jumpers on I/O Board
Pin
Function
(Default Setting in Bold)
LCD Sleep Control
W1: 1-2 short LCD always on
W1: 2-3 short LCD in sleep mode at power-on;
software enables the LCD
LCD Dimming Control W2: 1-2 short LCD software dimming control
always enabled
W2: 2-3 short LCD at full brightness at
power-on; software can enable
dimming control
LCD Backlight Supply
Voltage
W4: 1-2 short PXI-1020 and PXI-1025
W4: 2-3 short Reserved
1W3
2W2
3W1
4W4
1 2 3
4
