Appendix E Front Panel and Connectors
© National Instruments Corporation E-5 PXI-8170 Series User Manual
COM1
Figure E-4 shows the location and pinouts for the COM1 connector on all
models in the PXI-8170 Series. Table E-3 lists and describes the COM1
connector signal.
AMP manufactures a serial port mating connector, part number 745491-5,
for the COM1 connector on the PXI-8170.

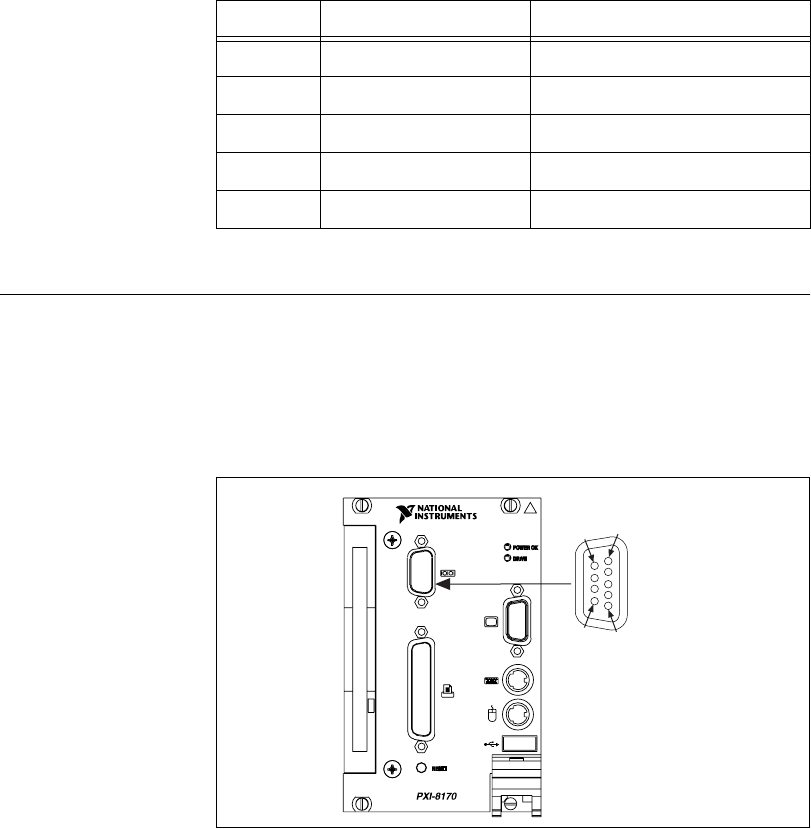

Figure E-4.
COM1 Connector Location and Pinout
11 NC Not Connected
12 SD Serial Data
13 HSync Horizontal Sync
14 VSync Vertical Sync
15 SC Serial Clock
Table E-2.
VGA Connector Signals (Continued)
Pin Signal Name Signal Description
1
5
9
6
COM1
