Appendix E Front Panel and Connectors
© National Instruments Corporation E-3 PXI-8170 Series User Manual
Keyboard and Mouse

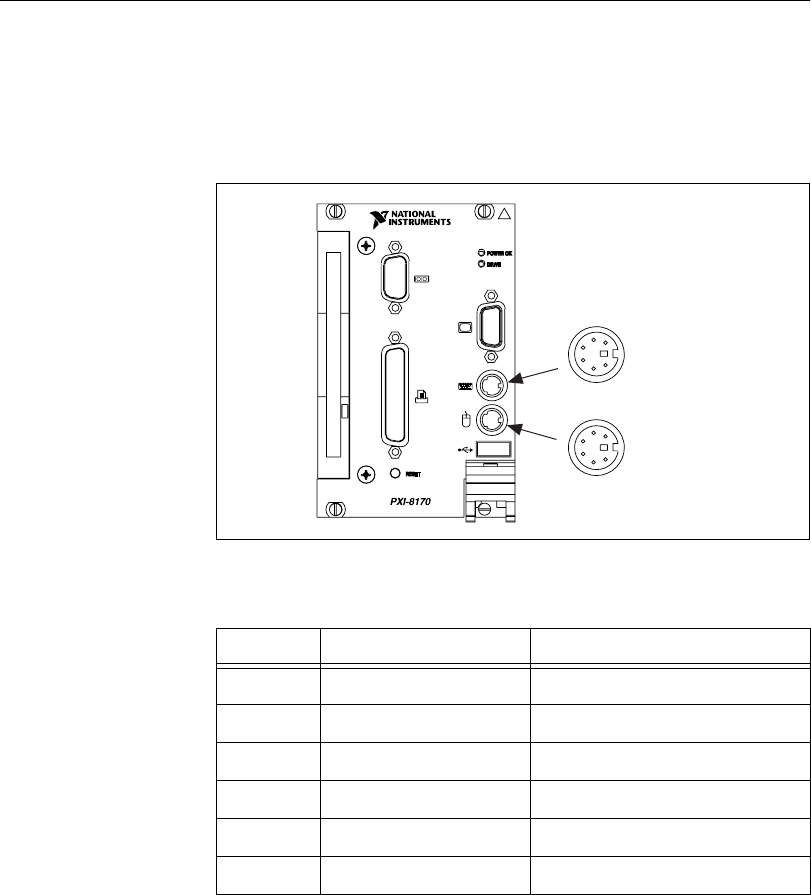

Figure E-2 shows the location and pinouts for the keyboard and mouse
connectors on the PXI-8170 Series. Table E-1 lists and describes the
keyboard and mouse connector signals.
AMP manufactures a mating connector with part numbers 212437-4
(housing), 212435-7 (ferrule), and 66735-4 (pin contact).
Figure E-2.
Keyboard and Mouse Connectors Location and Pinout
Table E-1.
Keyboard and Mouse Connector Signals
Pin Signal Name Signal Description
1 DATA Data
2 NC Not Connected
3 GND Ground
4 +5V +5 V
5 CLK Clock
6 NC Not Connected
Keyboard
Mouse
1
2
4
3
5
6
1
2
4
3
5
6
