Chapter 3 PXI-8170 Series Installation
PXI-8170 Series User Manual 3-4 www.ni.com

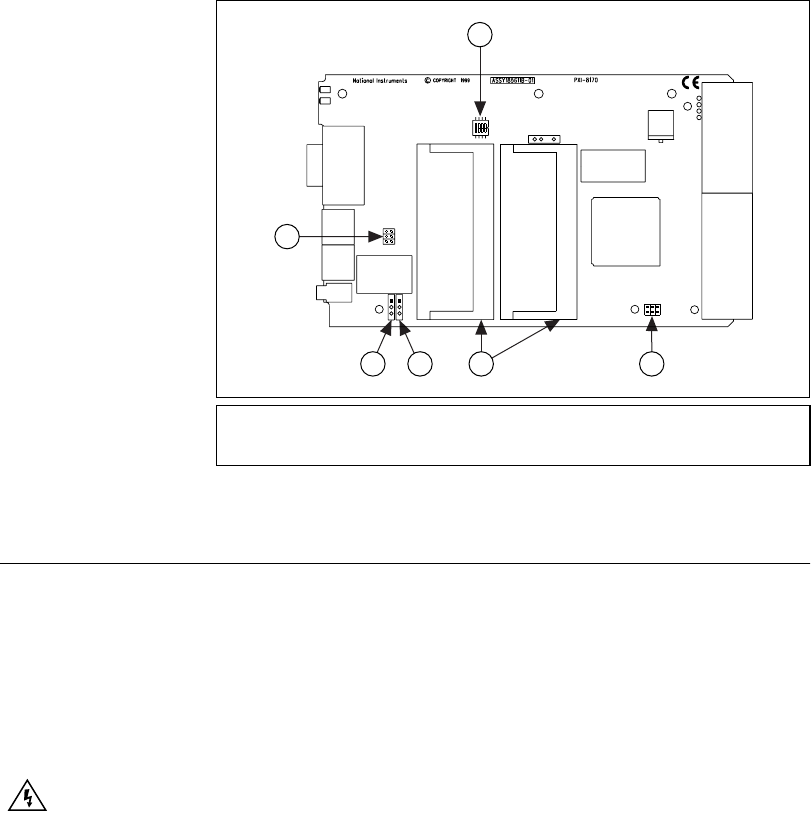

Figure 3-2 shows the CPU board.
Figure 3-2. PXI-8170 Series CPU Board Parts Locator Diagram
Installing the PXI-8170 Series
This section contains general installation instructions for the PXI-8170.
Consult your PXI mainframe user manual for specific instructions and
warnings.
1. Plug in your mainframe before installing the PXI-8170. The power
cord grounds the mainframe and protects it from electrical damage
while you install the module. (Make sure the power switch is
turned off.)
Warning To protect both yourself and the mainframe from electrical hazards, leave the
mainframe off until you finish installing the PXI-8170 module.
2. Remove or open any doors or covers blocking access to the system
controller slot (Slot 1) in the mainframe.
1J4
2S1
3S2
4 SO-DIMM Sockets
5J7
6S3
3 4
1
5
6
