Appendix E Front Panel and Connectors
PXI-8170 Series User Manual E-4 www.ni.com
VGA

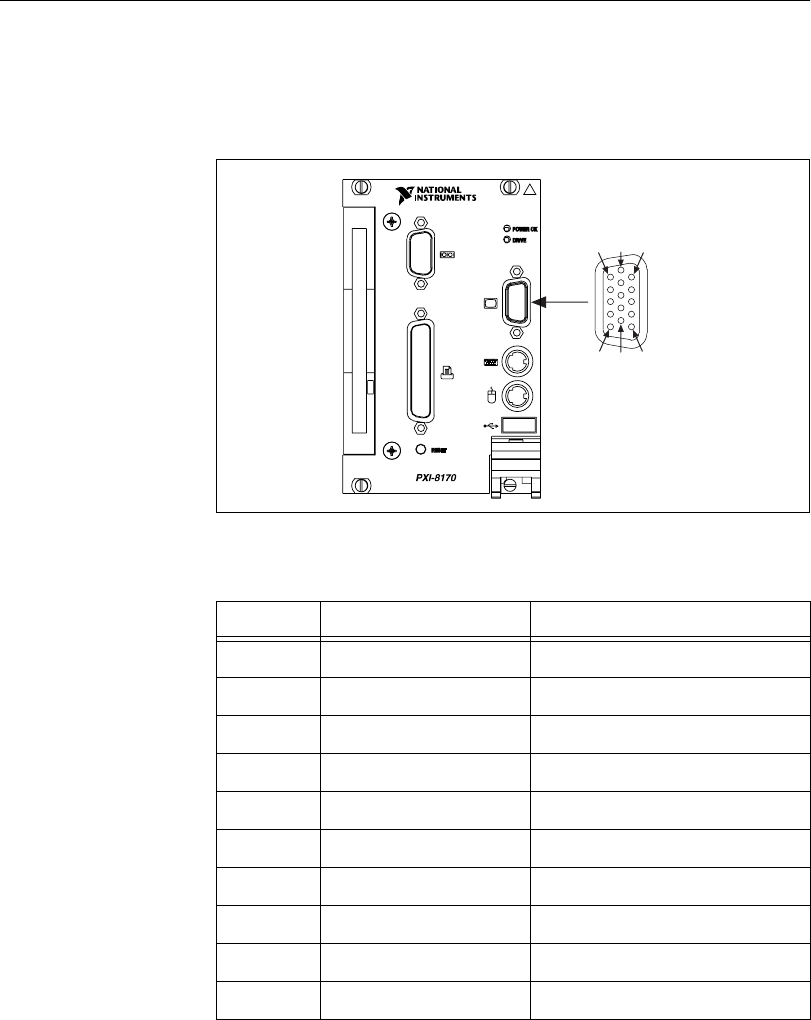

Figure E-3 shows the location and pinouts for the VGA connector on the
PXI-8170 Series. Table E-2 lists and describes the VGA connector signals.
AMP manufactures a mating connector with part numbers 748364-1
(housing) and 748333-2 (pin contact).
Figure E-3.
VGA Connector Location and Pinout
Table E-2.
VGA Connector Signals
Pin Signal Name Signal Description
1 R Red
2 G Green
3 B Blue
4 NC Not Connected
5 GND Ground
6 GND Ground
7 GND Ground
8 GND Ground
9 NC Not Connected
10 GND Ground
VGA
11
6
1
15105
