2-14

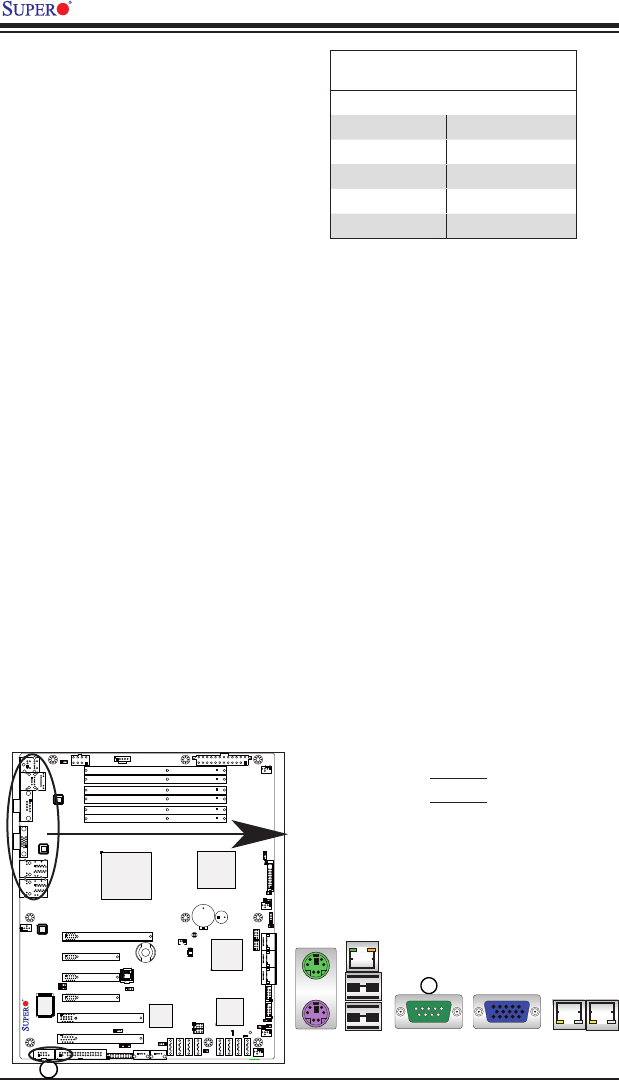

X8ST3-F/X8STE User's Manual
Serial Ports
A COM Port is located on the IO
Backplane and a Serial port is lo-
cated next to the Floppy Drive to
provide front access. See the table
on the right for pin denitions.
SerialPortPinDenitions
(COM1/COM2)
Pin # Denition Pin # Denition
1 CDC 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 Ground 10 NC
1. COM1
2. COM2
X8ST3-F/X8STE
1
2
