X8ST3-F/X8STE User's Manual
Chassis Intrusion
A Chassis Intrusion header is located
at JL1 on the motherboard. Attach the
appropriate cable from the chassis to
inform you of a chassis intrusion when
the chassis is opened.
Chassis Intrusion
PinDenitions(JL1)
Pin# Denition
1 Intrusion Input
2 Ground

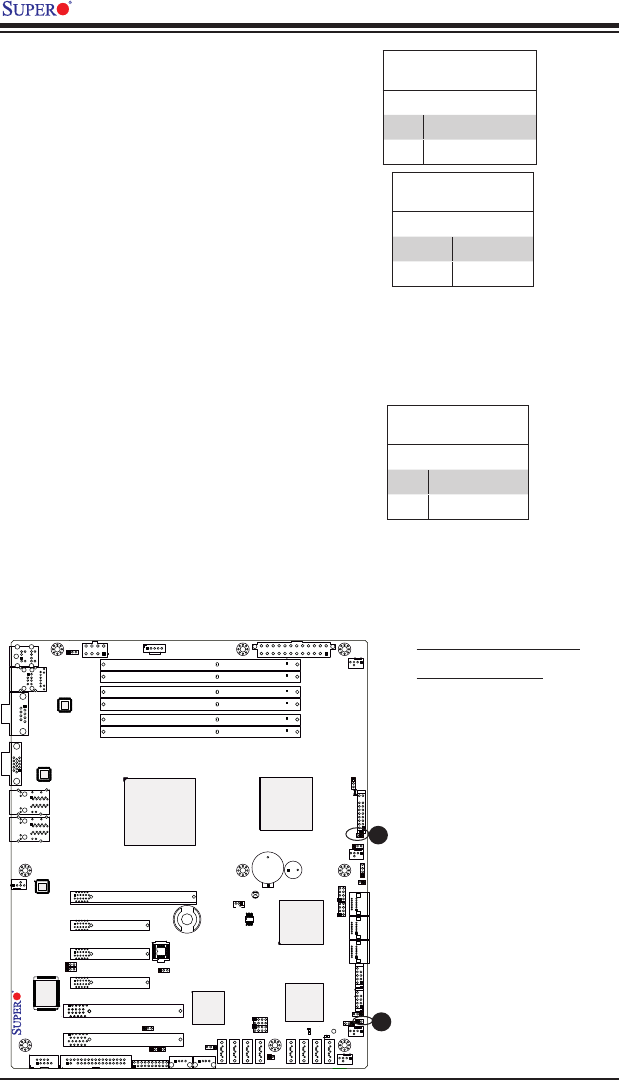

A. Overheat/Fan Fail LED
B. Chassis Intrusion
Overheat/Fan Fail LED
The JOH header is used to connect
an LED to provide warnings of chas-
sis overheat. This LED will also blink
to indicate a fan failure. Refer to the
table on right for pin denitions.
Overheat LED
PinDenitions
Pin# Denition
1 5vDC
2 OH Active
OH/Fan Fail LED
PinDenitions
State Message
Solid Overheat
Blinking Fan Fail
