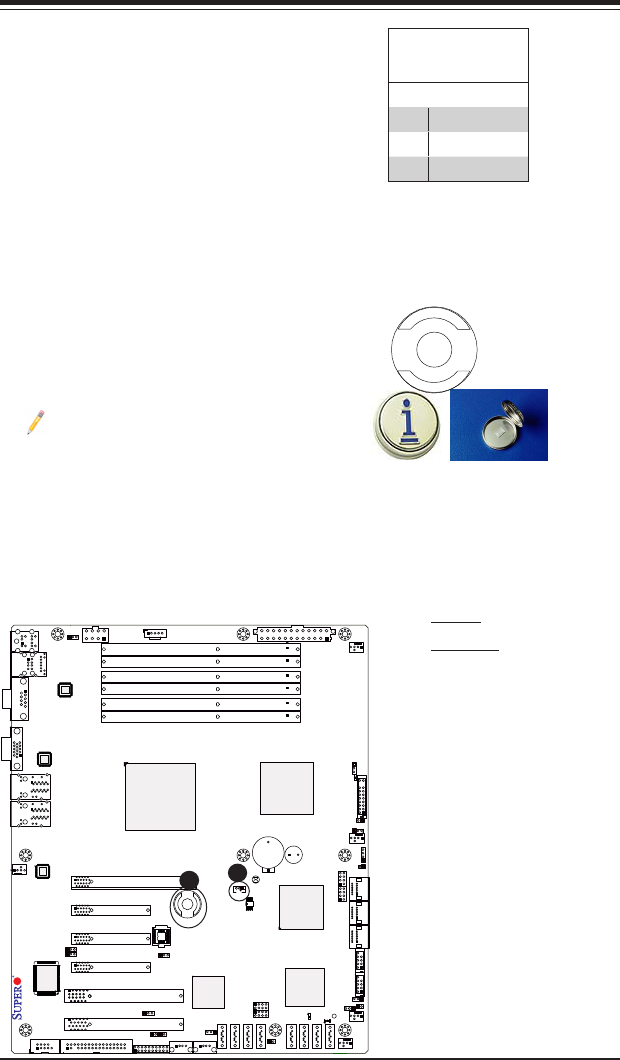

Wake-On-LAN
The Wake-On-LAN header is located
at JWOL on the motherboard. See the
table on the right for pin denitions. (You
must also have a LAN card with a Wake-
On-LAN connector and cable to use this
feature.)
Wake-On-LAN
PinDenitions
(JWOL)
Pin# Denition
1 +5V Standby
2 Ground
3 Wake-up
A. WOL
B. I-Button
A
B
I-Button
An onboard I-Button, located next to
USB Ports 2~3, is an 1-wire computer
chip enclosed in a durable stainless steel
can. I-Button stores instructions, provides
electronic interface and allows HostRAID
to operate with Mega-RAID rmware.
Note: RAID 5 is supported when
the I-Button (AOC-IButton68) is
installed on the motherboard. For
more information on the AOC-
IButton68, please refer to http://
www.supermicro.com/products/
accessories/addon/AOC-IBut-
ton68.cfm.
