116 Removing and replacing parts Q1860-90918

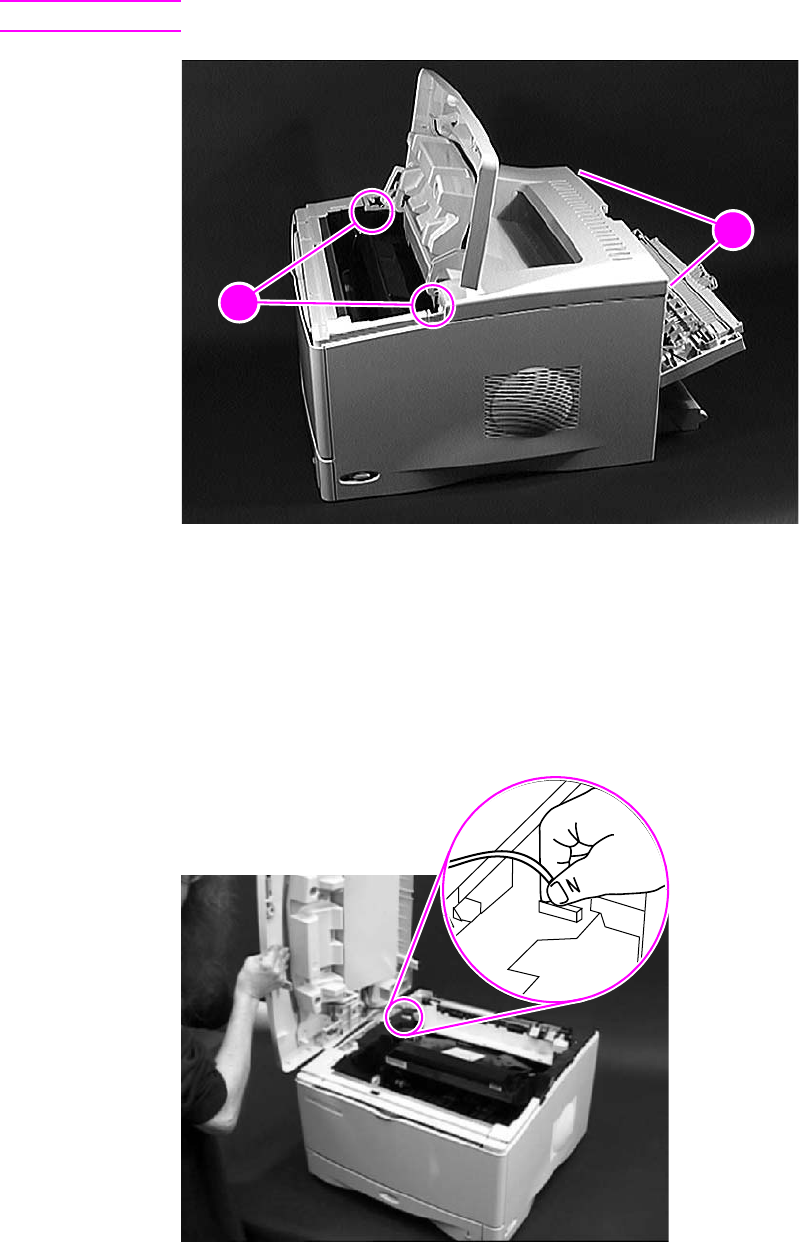

2 Remove two self-tapping screws on the top of the chassis (callout 1).
3 Remove the two self-tapping screws on the top portion of the back of the printer (callout 2).
Note The rear cover needs to be opened or removed before you can gain access to the screws.
Figure 41. Top cover removal (2 of 3)
4 The cable that connects the control panel to the printer chassis is on the left side of the top
cover. Tilt the cover to the left as you lift it. Be careful not to stress the cable as you loosen
the cover.
5 Disconnect the control panel cable from the printer chassis by grasping the wires and gently
pulling the connector straight up.
Figure 42. Top cover removal (3 of 3)
6 Remove the top cover.
2
2
1
2
